| Brand | EXCELLENT |
| Lifting Weight | 50-200t |
| Lifting Height | 10-40m |
| Main Girder Form | Double Girder/Single Girder |
| Type | Launching Crane |
| Operation Form | Air Operation+Ground Operation |
| Transport Package | Air Bubble Film/Nude Packing/Carton |
| Electric Standard | IEC, Ec |
| Certificate | CE, ISO |
| Place of Origin | Henan, China |

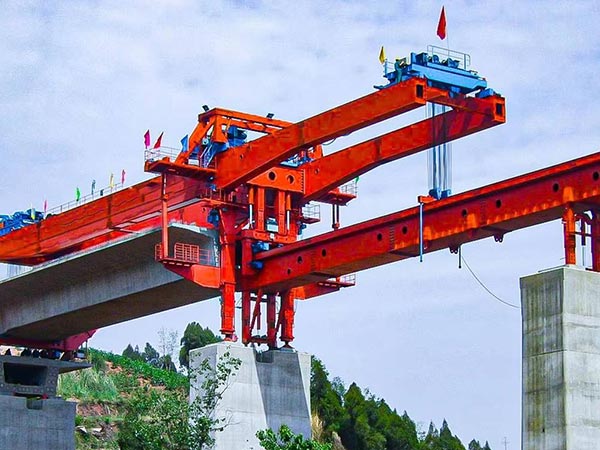

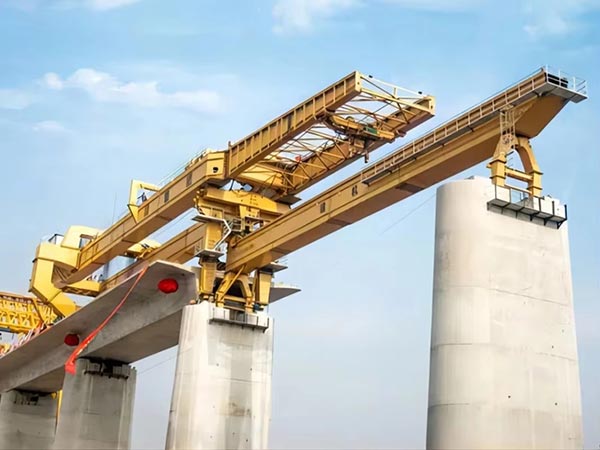

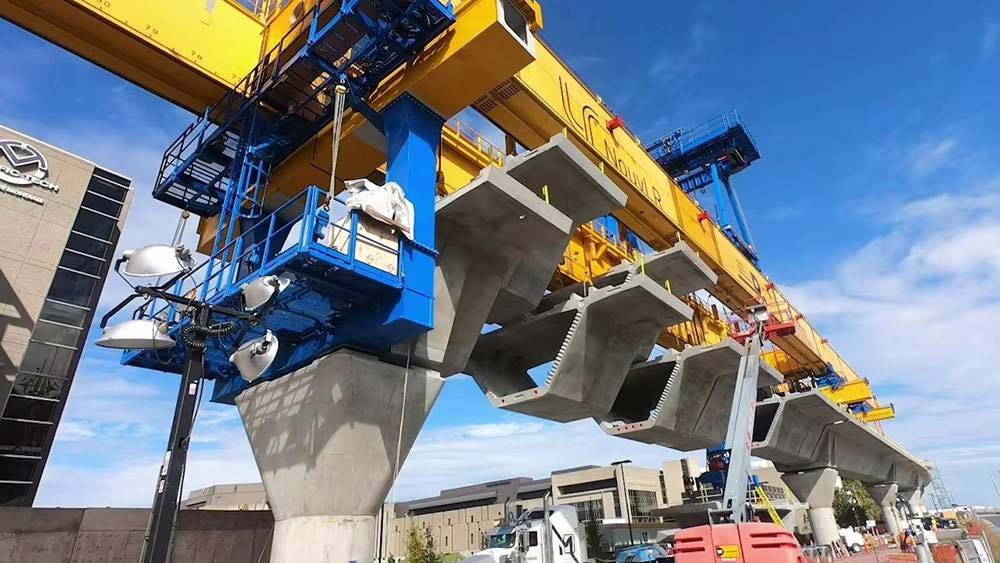

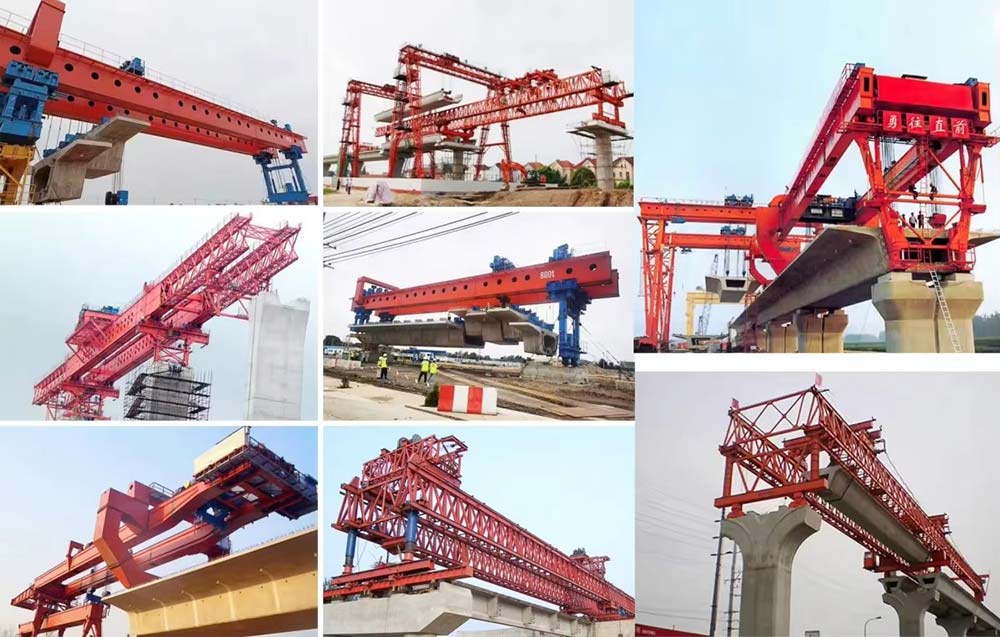

Highway bridge girder erection machine beam launcher girder crane, also known as a beam launcher or girder launcher, is a specialized crane used to lift, position, and install huge precast concrete or steel girders during bridge and road building. This heavy-duty equipment is essential for assembling bridge spans because it allows for exact positioning of girders over piers.
Bridge girder erection cranes are widely used in highway, railway, and overpass construction, and they are critical for projects requiring great precision, efficiency, and safety while handling enormous structural components.
High Lifting Capacity and Span
Bridge girder erection cranes are designed to handle extremely massive and heavy girders, weighing anywhere from 100 to over 1000 tons. They can also support broad spans between piers, making them ideal for large-scale bridge projects.
Segmental Lifting Mechanism
Equipped with dual lifting mechanisms that allow for precise lifting and placement of long bridge girders in segments, ensuring stability and reducing structural stress during the erection process.
Multiple Operation Modes
A range of operating modes are available, including front, rear, and side beam placement, allowing for flexible girder positioning to fulfill the special requirements of complicated bridge building layouts.
Self-Propelled Structure
The crane is frequently mounted on a self-propelled gantry system, which allows it to move along the bridge structure, reposition itself, and install several girders without requiring further transportation or setup.
Advanced Control Systems
Integrated with cutting-edge control systems, including remote and automatic control capabilities. These technologies let
operators to precisely adjust movements and positions, which improves girder placement accuracy.
Modular Design
EXCELLENT bridge girder erection cranes are designed with a modular structure that allows for simple assembly, disassembly, and transit between project sites, making them an economical choice for many projects.
|
Lifting Weight (t)
|
60
|
80
|
100
|
150
|
|
bridge radius (m)
|
20~30
|
20~35
|
30~40
|
35~50
|
|
Slope
|
below 1/20
|
|||
|
Turning Radius(m)
|
200
|
250
|
300
|
350
|
|
Angle of Skew Bridge
|
0~15°
|
|||
|
shop travelling speed(lengthways moving)
|
1
|
1.2
|
0.8
|
0.6
|
|
crane travelling speed
(lengthways moving) |
6/0.6
|
|||
If you want to get a price of our highway bridge girder erection machine, please help to confirm the details as below:
1. Max capacity? the heaviest beam weight? the heaviest beam size?
2. How many piece beams per span?
3. Feeding beam way: Deck feeding beam or under bridge feeding beam?
4. The entire bridge(Need to erect) layout drawing,
5. Assembling method of the bridge(Need to erect)?
6. Detail drawing of the segment beam， slope，and size drawing?
7. Overall view of all segmented beams joined together.
8. Kindly send me the relative detail drawing of the bridge.

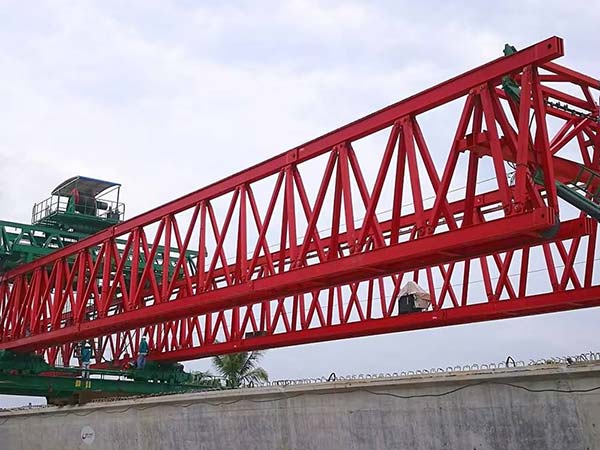

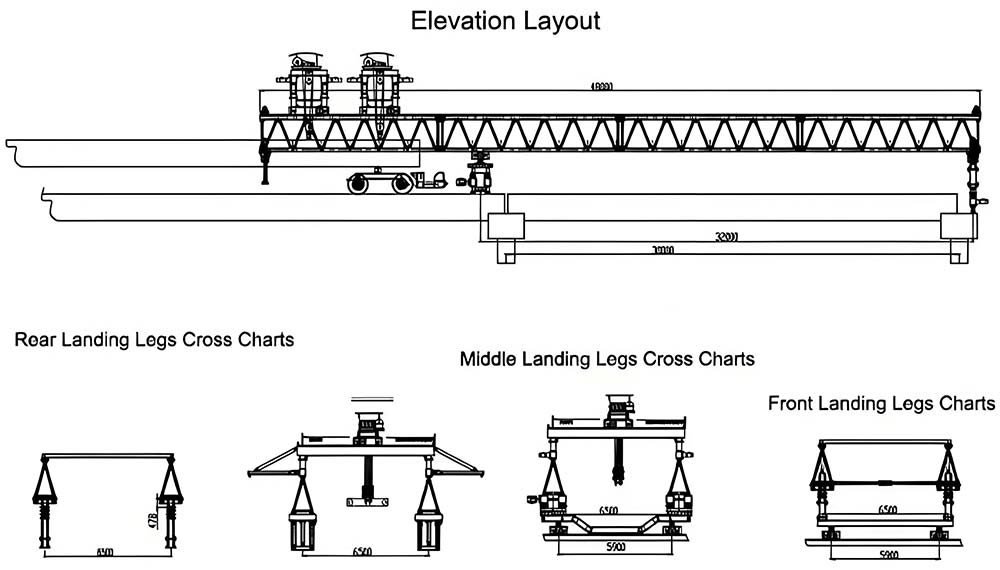

Beam launcher Structure

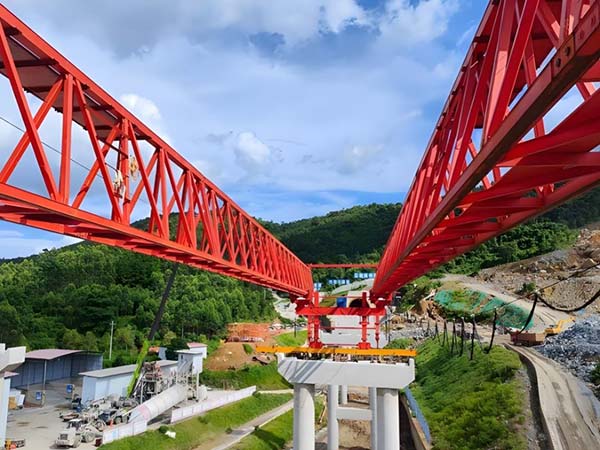

The main girder of the bridge girder erection crane is a large horizontal beam that forms the backbone of the crane. It is built from reinforced steel, the main girder can withstand enormous loads and the stress of lifting and moving heavy bridge segments.

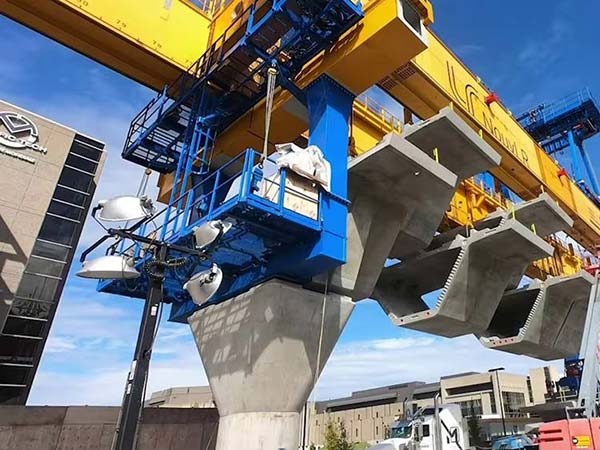

Lifting Trolley
It contains dual hoists that lift each side of the girder for a balanced, stable lift. These hoists are built for the precise control necessary to safely install long, heavy girders. It moves smoothly along the main beam, providing precise positioning of the load.
Winch System
This system is responsible for lifting and lowering the girders using steel cables or ropes. It works in tandem with the hydraulic system to generate the required lifting force. These winches are designed to carry the weight of extremely heavy girders, ensuring safe lifting operations. The winch system includes load sensors to prevent overloads and improve lifting safety.

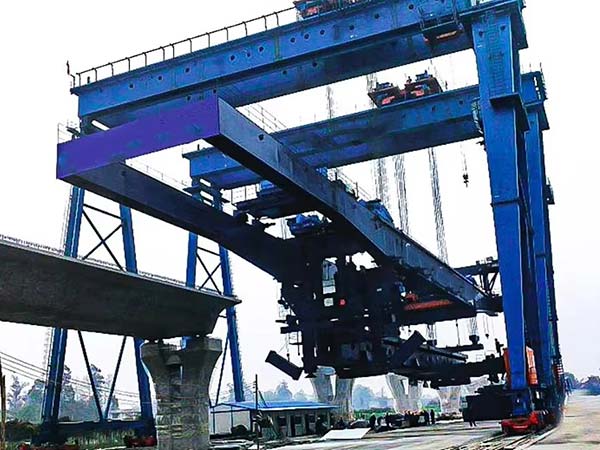

Gantry Structure
This framework holds the main girder in place above the construction site and is equipped with wheels or tracks that allow the crane to move along the bridge span. The Telescopic Legs support legs can be modified to different heights according on the site’s requirements and the bridge’s design, allowing the crane to handle bridges of various elevations.

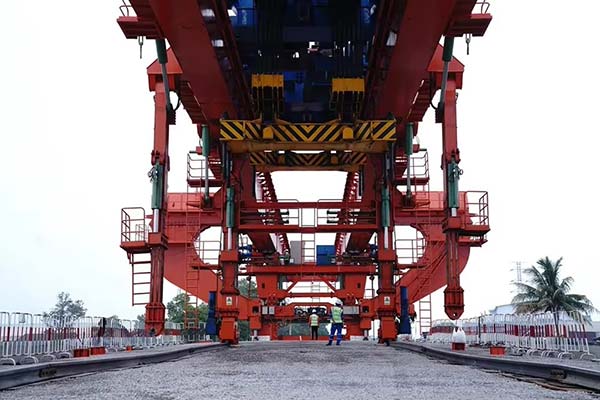

Hydraulic System
The hydraulic system drives the crane’s movement operations and provides the force required to raise large bridge girders. This mechanism is placed in crucial places and allows for smooth, regulated, and strong movements. This hydraulic system enables for fine adjustments, which are essential for safe and correct girder positioning during installation.

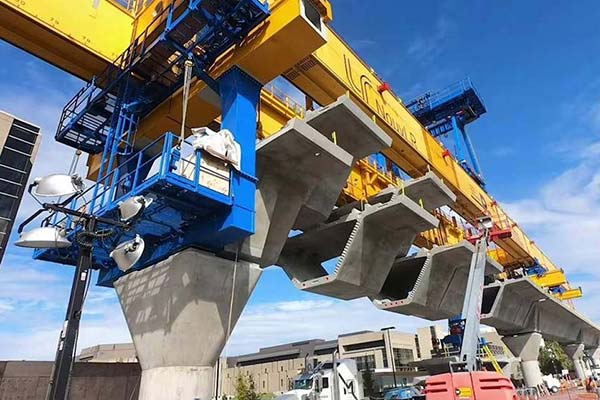

Safety System
A range of safety features are installed to ensure safe operation during heavy lifting jobs. The overload protection system protects the crane from lifting over its maximum capacity, lowering the danger of equipment failure or accidents. This technique keeps the weight stable during lifting and transit, reducing sway that could cause damage to the girder or nearby structures.

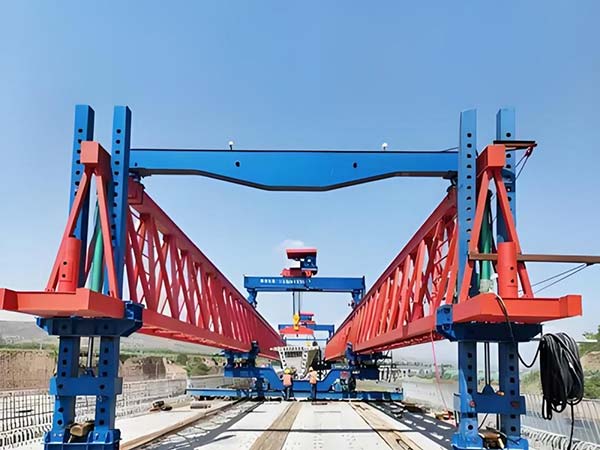

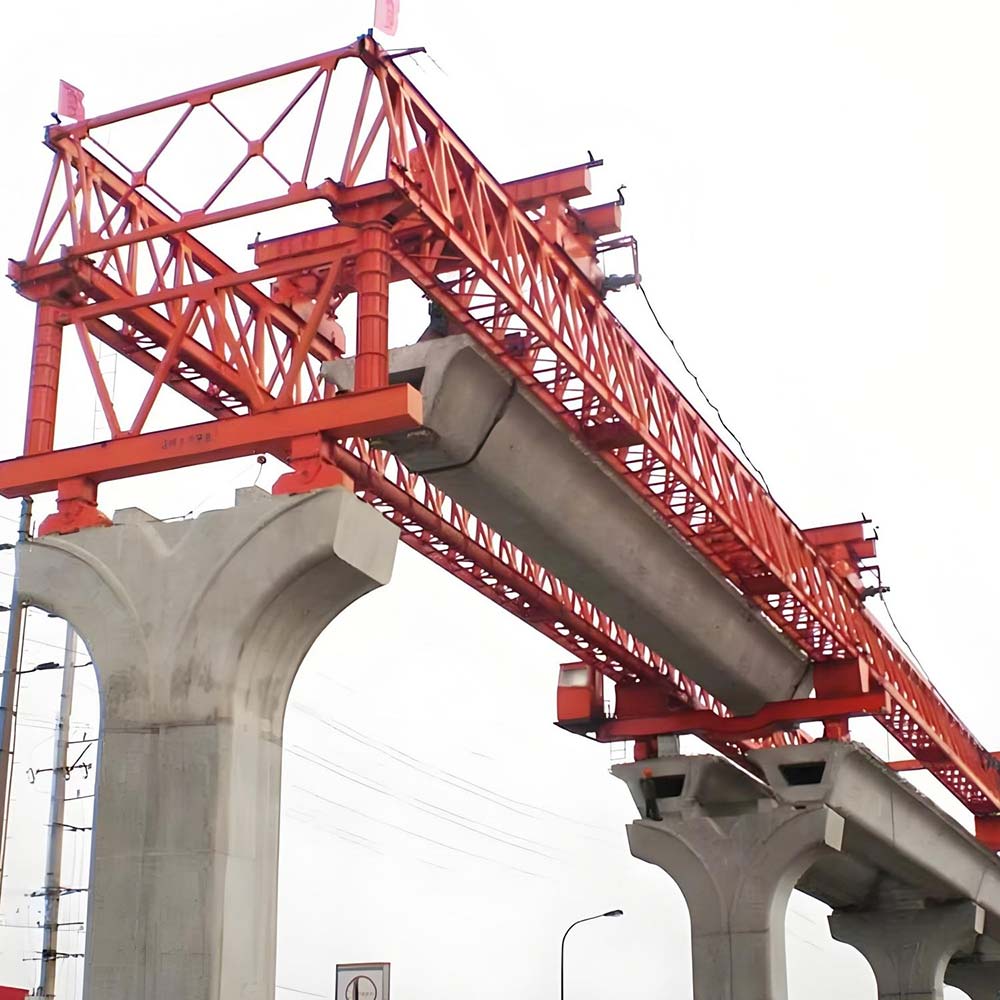

The bridge concrete beam girder construction launching gantry crane is a kind special crane that specialized in launching the precast box or T beams onto the precast piers.

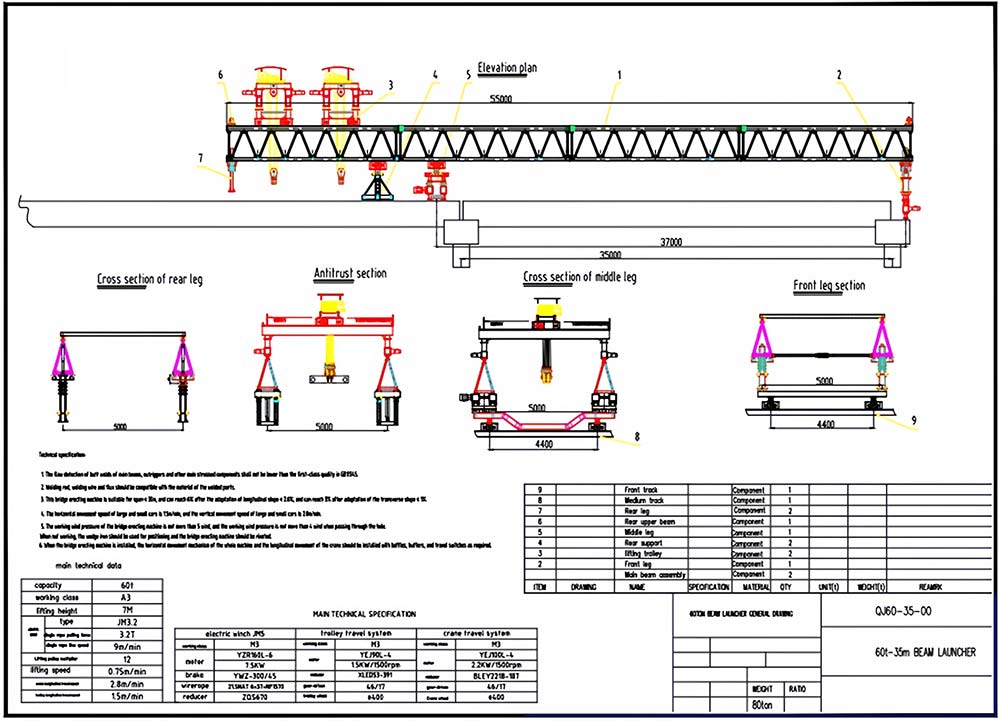

Widely used in railway bridge and highway bridge erection, subway, mrt. it consists of main girder, crane, front legs, rear legs, front leg cylinder, rear leg cylinder and the transverse connection of front, middle, rear legs. The control part is composed of hydraulic system and electric control system.
The bridge girder erection crane can meet the cross curve erection, variable span erection, span continuous beam, composite beam etc. it can be used not only in plain construction, but also to meet the construction of mountain highway slope, small radius curved bridge, skew bridge and tunnel bridge requirements.
All kinds of Overhead Crane, Gantry Crane, Electric Hoist, Transfer Cart, Industrial Electric Winch, Radial/Flat Gate Hoist, Steel Gate, etc.
Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Specific parameters such as lifting capacity, lifting height, span, cantilever length if have, power supply voltage, control method, etc.
Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
Before the delivery, every products will be tested. We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate for each crane. You are also warmly welcomed to come to our factory for inspection.
Yes, we have a professional installation team and have been to manycountries to assist in installation. lfyou need us to provide this service,pleaselet us know in advance and we will provide you with the best solution.
We have after-sales team to support you for 24hours.
Safest package chosen to protect your goods during transportation.
