| Brand | EXCELLENT |
| Lifting Capacity | 0.5-15t |
| Lifting Height | 6-30m |
| Lifting Speed | 3.5-8m/min |
| Travel Speed | 18-20m/min |
| Power Supply | 220V/380V/440V 50/60Hz 3Ph |
| Working System | M3~M5 |
| Ambient Temperature | -10~+60 ℃ |
| Certificate | CE, ISO |
| Place of Origin | Henan, China |

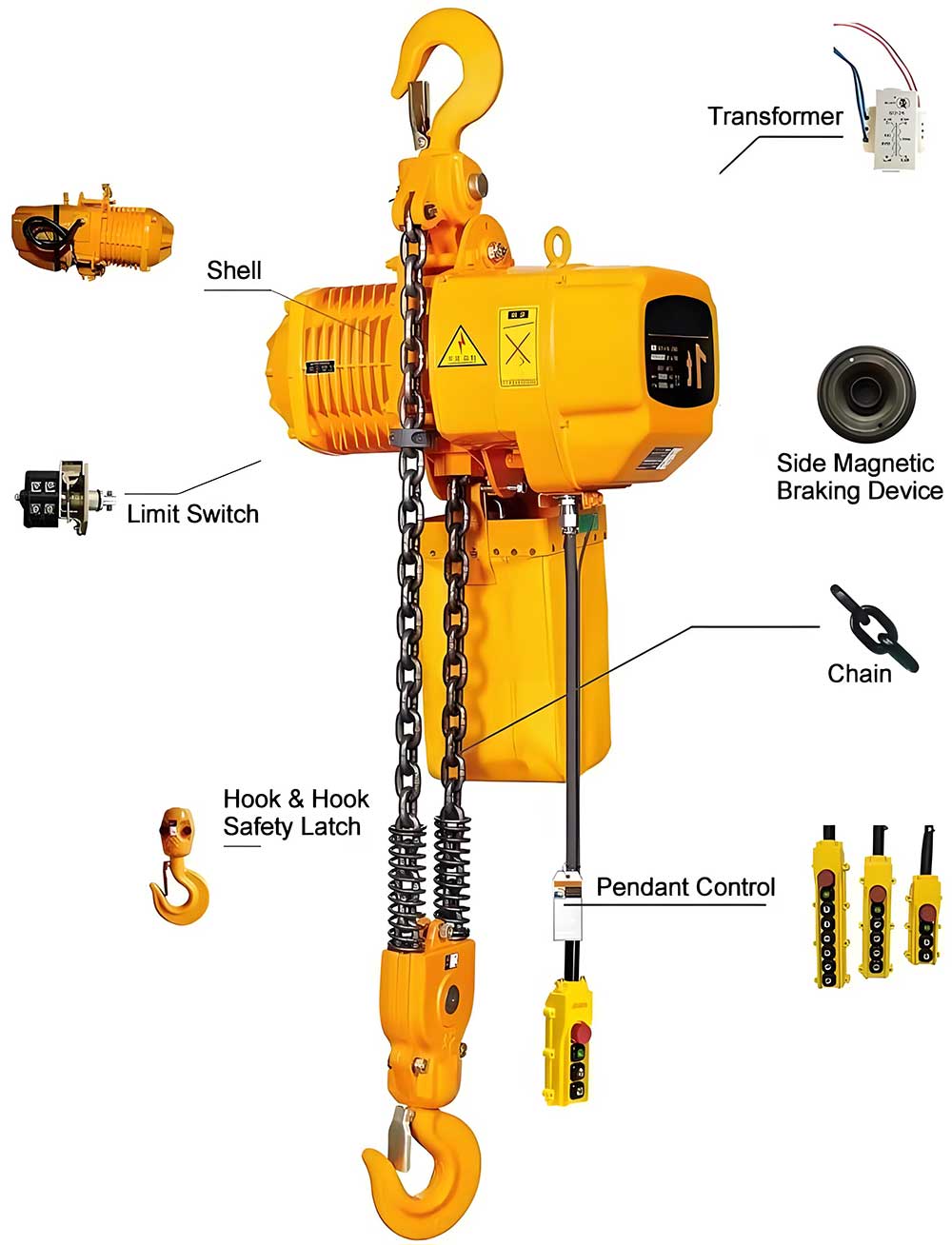

Electric Chain Hoist is a light and small type lifting equipment. It consists of electric motor, transmission mechanism and sprocket. And all produced according to international standards. The body is beautiful in appearance and durable. The internal gears are all quenched at high temperatures, which increases the wear resistance and toughness of the gears.
1. Installation with high strength bolt connection.
2. Convenient in operation, safe and turn to flexible.
3. Low noise, commodious cabin and good looking.
4. High quality and efficiency, competitive price.
5. Reasonable and simple whole structure, Light self-weight, conform to the state standards.
6. Inexpensive handling systems doesn’t require modification of the building structure around.
|
Lifting capacity
|
ton
|
0.5
|
1
|
2
|
3
|
5
|
10
|
15
|
|
Lifting speed
|
m/min
|
8
|
8
|
8
|
8
|
8
|
7
|
3.5
|
|
Lifting height
|
m
|
6/9/12
|
6/9/12/18/24/30
|
9/12/18/24/30
|
||||
|
Running speed
|
m/min
|
20
|
20
|
20
|
20
|
20
|
20
|
18
|
|
Min. radius of curvature
|
m
|
1.8 / 2
|
2 / 2.5 / 3.0
|
3.5 / 4 / 9
|
||||
|
Power supply
|
v
|
380V 50Hz 3Phase
|
||||||
|
Rail I-beam model
|
/
|
16-28b
|
16-28b
|
20a-32c
|
20a-32c
|
25a-45c
|
32b-63c
|
45a-63c
|
If you want to get a price of our electric chain hoist, please help to confirm the details as below:
1.the capacity:ton？
2.the lifting height:m?
3.double chain or single chain?
4.double speed or single speed?
5.the vlotage 380v,50hz, 3 phase ok for you?
All kinds of Overhead Crane, Gantry Crane, Electric Hoist, Transfer Cart, Industrial Electric Winch, Radial/Flat Gate Hoist, Steel Gate, etc.
Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Specific parameters such as lifting capacity, lifting height, span, cantilever length if have, power supply voltage, control method, etc.
Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
Before the delivery, every products will be tested. We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate for each crane. You are also warmly welcomed to come to our factory for inspection.
Yes, we have a professional installation team and have been to manycountries to assist in installation. lfyou need us to provide this service,pleaselet us know in advance and we will provide you with the best solution.
We have after-sales team to support you for 24hours.
Safest package chosen to protect your goods during transportation.
Alibaba pay、 Alibaba Trade Assurance、T/T、L/C.
