| Brand | EXCELLENT |
| Lifting Capacity | 0.5t-80t |
| Material | Q345B |
| Color | Customized |
| Parts | Adapter, Teeth, Side cutter |
| Ambient Temperature | -10~+60 ℃ |
| Certificate | CE, ISO |
| Place of Origin | Henan, China |

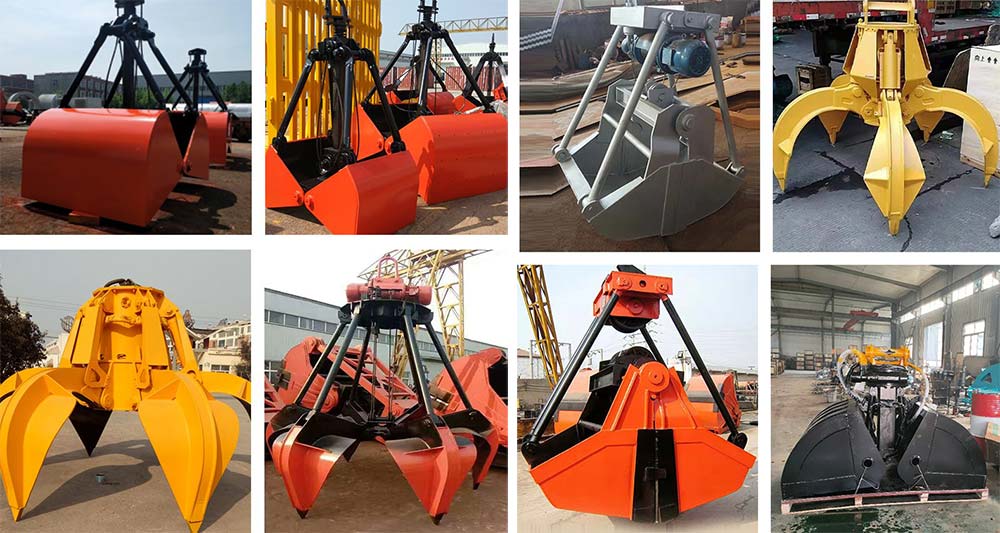

The design of crane grab bucket depends on the volume of the material to be lifted and the cycle time for transporting raw materials to other production lines. Industries such as cement and sugar refining, as well as many others, require grabs to handle bulk raw materials to ensure material supply. Grab types include hydraulic, remote-controlled, mechanical, and electric, and can be customized to meet customer needs.

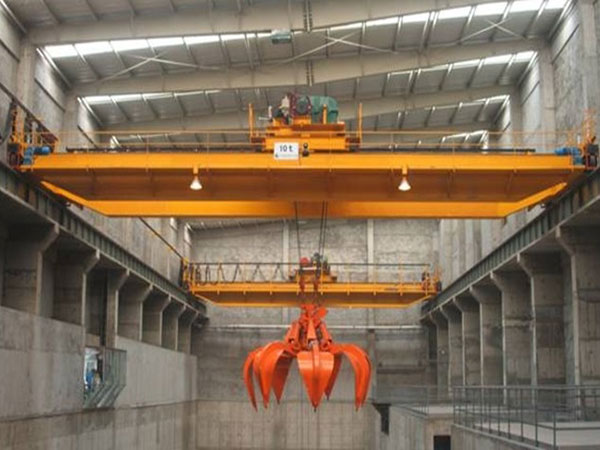

Grabs can also be used with bridge cranes and are suitable for various industrial applications.

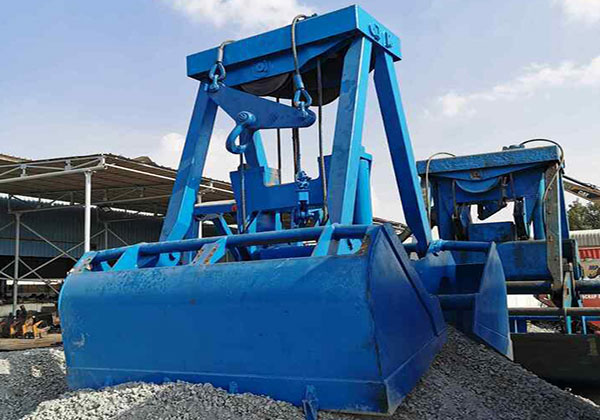

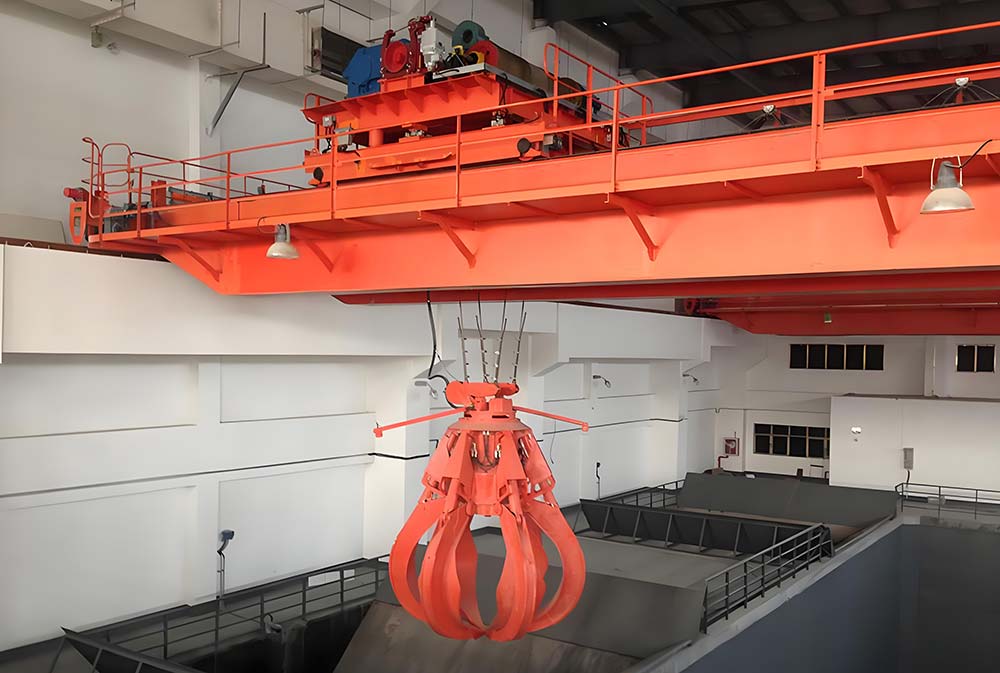

Mechanical grabs on various cranes are equipped with two sets of motor drums (motor hoists). Each set of motor drums guides two wire ropes. One set of wire ropes is fixed to a balance frame for support, while the other set passes through upper and lower beam pulleys, forming a pulley block that serves as the grab’s opening and closing mechanism.
At the start of operation, the support wire ropes lift the grab to the predetermined position. Then, the support ropes are tightened, and the grab body opens using the weight of the lower beam shaft as the center point. The grab body opens to its maximum extent when the contact plates of the two lugs collide. When the grab bucket opens, the center distance between the upper and lower beam pulleys increases. Then, the support rope is lowered, and the opened grab bucket falls onto the captured material, retracting around the opening and closing rope, restoring the center distance between the upper and lower beam pulleys to its initial position. This completes the material grabbing process. Finally, the opening and closing rope and support rope are simultaneously raised, lifting the entire grab bucket, and it is moved to the unloading area to unload the material according to the crane’s instructions.

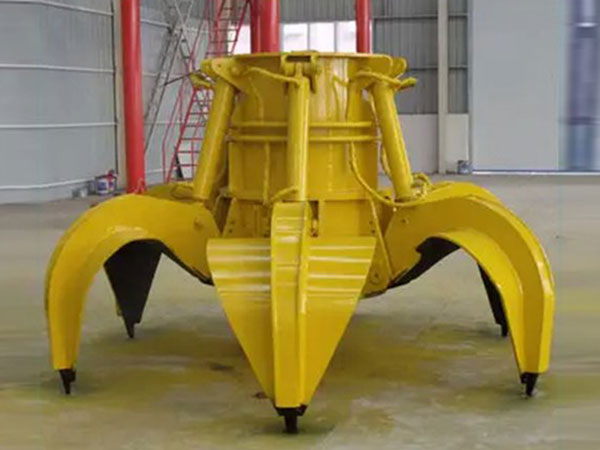

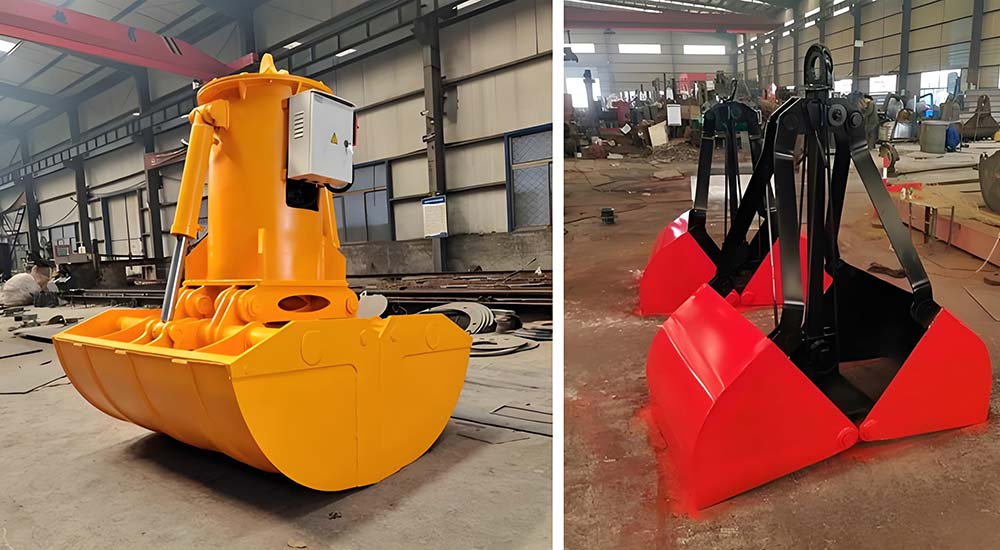

Electro-hydraulic multi-valve grab buckets and electro-hydraulic double-disc grab buckets utilize German system technology and materials, with hydraulic components originally imported from Europe and America. They comprehensively apply advanced electro-hydraulic mechanical technology, offering high grabbing force and a high degree of automation. They are ideal loading and unloading tools for large-scale pig iron casting, waste ore, garbage, iron powder, straw, slag, and other materials. Suitable for steel plants and mines, they are mainly used in forestry, coal mines, ports, scrap steel recycling, waste treatment, and biomass energy industries.
The product features a compact structure, attractive appearance, energy efficiency, and easy operation. Different options are available to suit various industries, usage conditions, and materials being gripped. The grippers are available in multi-disc and double-disc configurations.
All kinds of Overhead Crane, Gantry Crane, Electric Hoist, Transfer Cart, Industrial Electric Winch, Radial/Flat Gate Hoist, Steel Gate, etc.
Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Specific parameters such as lifting capacity, lifting height, span, cantilever length if have, power supply voltage, control method, etc.
Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
Before the delivery, every products will be tested. We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate for each crane. You are also warmly welcomed to come to our factory for inspection.
Yes, we have a professional installation team and have been to manycountries to assist in installation. lfyou need us to provide this service,pleaselet us know in advance and we will provide you with the best solution.
We have after-sales team to support you for 24hours.
Safest package chosen to protect your goods during transportation.
Alibaba pay、 Alibaba Trade Assurance、T/T、L/C.
