| Brand | EXCELLENT |
| Lifting Capacity | 1-50T |
| Lifting Speed | 6 m/min, 15 m/min |
| Hoisting Speed | 12/3 m/min |
| Hoisting Height | 6/9/12/18/24M |
| Working Duty | M4-M6 |
| Power Source | 380V 50HZ |
| Ambient Temperature | -10~+60 ℃ |
| Certificate | CE, ISO |
| Place of Origin | Henan, China |

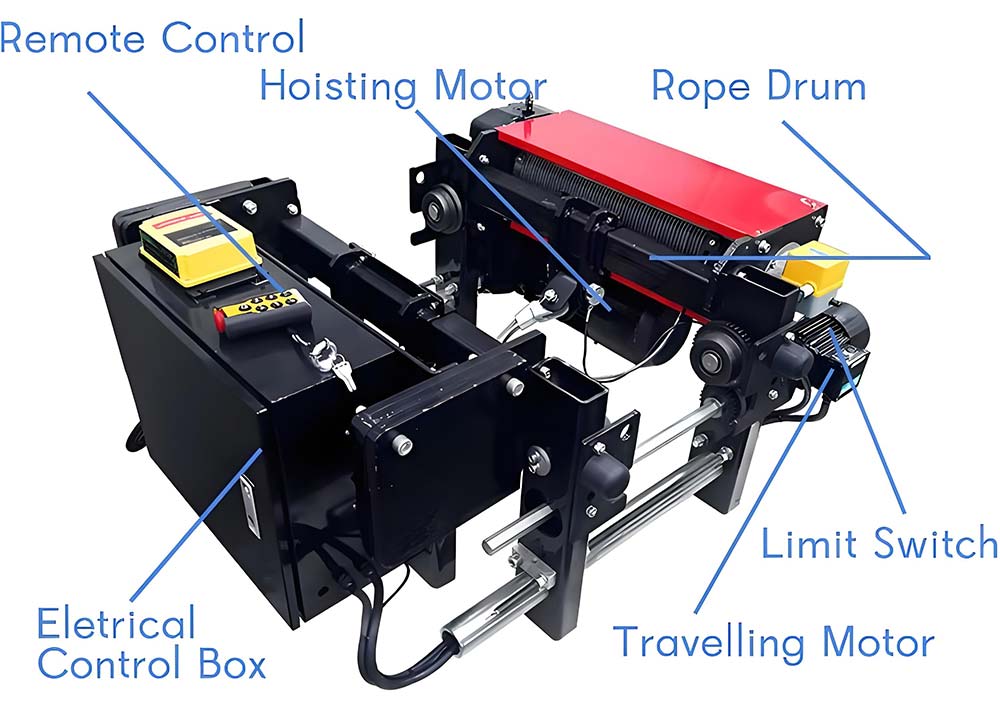

Electric hoist with trolley is a device used for lifting and lowering heavy loads using an electric power source. It typically consists of a motorized unit that drives a drum or wheel around which a wire rope or chain is wound.
The load is attached to the rope or chain, and when the motor is activated, it lifts the load vertically. The lifting capacity and lifting height can be customized.
High Lifting Capacity
Capable of lifting heavy loads, often ranging from 500 kg to several tons, offering greater lifting capacity than chain hoists.
Smooth and Precise Operation
Offers precise control over lifting and lowering operations, with options for variable speed control.
Versatility
Can be used in various configurations, including stationary, monorail, or crane-mounted setups.
High Efficiency
Electric operation ensures fast and efficient lifting, improving productivity in industrial settings.

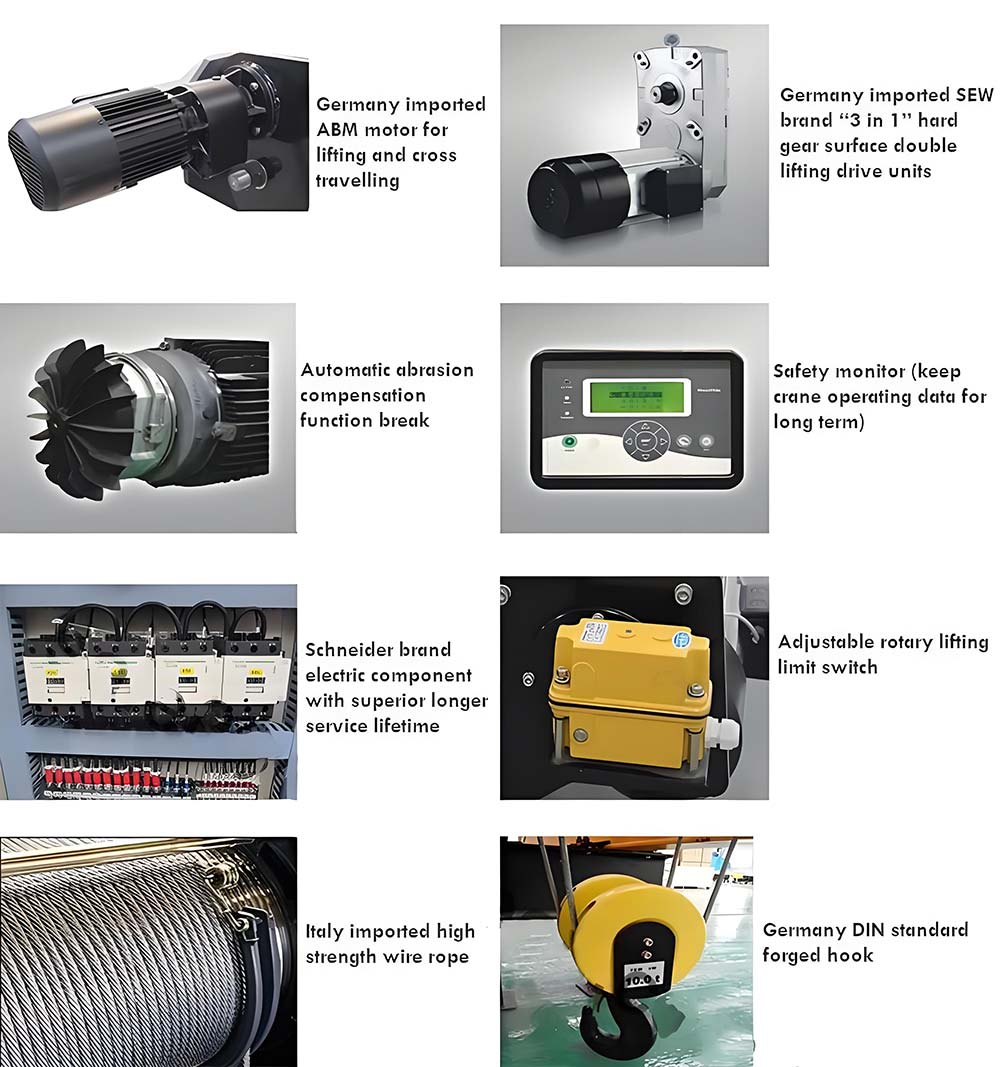

Safety Mechanisms
Equipped with brakes, limit switches, and overload protection to ensure safe operation.
Long Service Life
Built to withstand rigorous industrial use, with durable components that ensure a long service life.
|
Rated load S.W.L (Kg)
|
Work level
|
Lifting height (m)
|
Lifting speed(m/min)
|
Traveling speed(m/min)
|
|
|
FEN
|
ISO
|
||||
|
2000
|
1AM-4M
|
M3-M6
|
6/9/12/15/18
|
0.8/5
|
2~20
|
|
3200
|
1AM-4M
|
M3-M6
|
6/9/12/15/18
|
0.8/5
|
2~20
|
|
5000
|
1AM-4M
|
M3-M6
|
6/9/12/15/18
|
0.8/5
|
2~20
|
|
6300
|
1AM-4M
|
M3-M6
|
6/9/12/15/18
|
0.8/5
|
2~20
|
|
8000
|
1AM-4M
|
M3-M6
|
6/9/12/15/18
|
0.8/5
|
2~20
|
|
10000
|
1AM-4M
|
M3-M6
|
6/9/12/15/18
|
0.8/5
|
2~20
|
|
12500
|
1AM-4M
|
M3-M5
|
6/9/12/15/18
|
0.8/5
|
2~20
|
|
16000
|
1AM-4M
|
M3-M5
|
6/9/12/15/18
|
0.66/4
|
2~20
|
|
20000
|
1AM-4M
|
M3-M5
|
6/9/12/15/18
|
0.66/4
|
2~20
|
If you want to get a price of our European hoist, please help to confirm the details as below:
1. Lift capacity? (5ton 10ton 16ton or others?)
2. Lift height? (3m 6m 9m 12m..?)
3. Crane travel length?(If travel rails and bus bar needed, please supply this information)
4. Power supply in your local? (Is 380V/50Hz/3P?)
5. Nearest sea port? We will quote you a CFR price for your reference.
1. Heavy Manufacturing & Assembly Lines
Used in automobile, aerospace, and shipbuilding industries.Lifts large and complex components like engines, fuselages, and ship sections.Ensures safe and synchronized lifting for precision assembly.
2. Steel & Metal Processing Plants
Handles long steel beams, metal plates, and heavy machinery.Provides stability and reduced swinging when lifting large metal parts.Used in rolling mills, foundries, and metal fabrication workshops.
3. Construction & Precast Concrete Industry
Lifts precast concrete panels, beams, and columns.Ensures balanced lifting of long, heavy structures.Common in bridge construction, infrastructure projects, and tunnel boring operations.
4. Warehousing & Logistics Centers
Moves large pallets, shipping containers, and bulk materials.Enhances efficiency in material handling and logistics operations.Supports automated lifting and transportation systems.
5. Power Plants & Energy Sector
Used in nuclear, hydro, and thermal power plants for maintenance.Lifts turbines, generators, transformers, and reactor components.Ensures safe handling of high-value equipment.
6. Railway & Locomotive Maintenance
Supports lifting of train carriages, bogies, and locomotive components.Used in railway workshops, metro maintenance depots, and manufacturing plants.Ensures precision alignment and easy access for repairs.
7. Mining & Heavy Equipment Maintenance
Lifts large mining trucks, excavator parts, and drilling equipment.Used in underground mines and open-pit operations.Enhances safety and operational efficiency in mining workshops.
All kinds of Overhead Crane, Gantry Crane, Electric Hoist, Transfer Cart, Industrial Electric Winch, Radial/Flat Gate Hoist, Steel Gate, etc.
Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Specific parameters such as lifting capacity, lifting height, span, cantilever length if have, power supply voltage, control method, etc.
Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
Before the delivery, every products will be tested. We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate for each crane. You are also warmly welcomed to come to our factory for inspection.
Yes, we have a professional installation team and have been to manycountries to assist in installation. lfyou need us to provide this service,pleaselet us know in advance and we will provide you with the best solution.
We have after-sales team to support you for 24hours.
Safest package chosen to protect your goods during transportation.
Alibaba pay、 Alibaba Trade Assurance、T/T、L/C.
20 ton European double beam crane for large factory in Germany
