| Brand | EXCELLENT |
| Load Capacity | 5~500 t |
| Power | 710 W, 1400 W, 1200 W |
| Voltage | 220 V, 480 V, Other |
| Rope Capacity | 80-300m |
| Motor Power | 3~18.5kw |
| Application |
Cranes, Boat, Other
|
| Ambient Temperature | -10~+60 ℃ |
| Certificate | CE, ISO |
| Place of Origin | Henan, China |

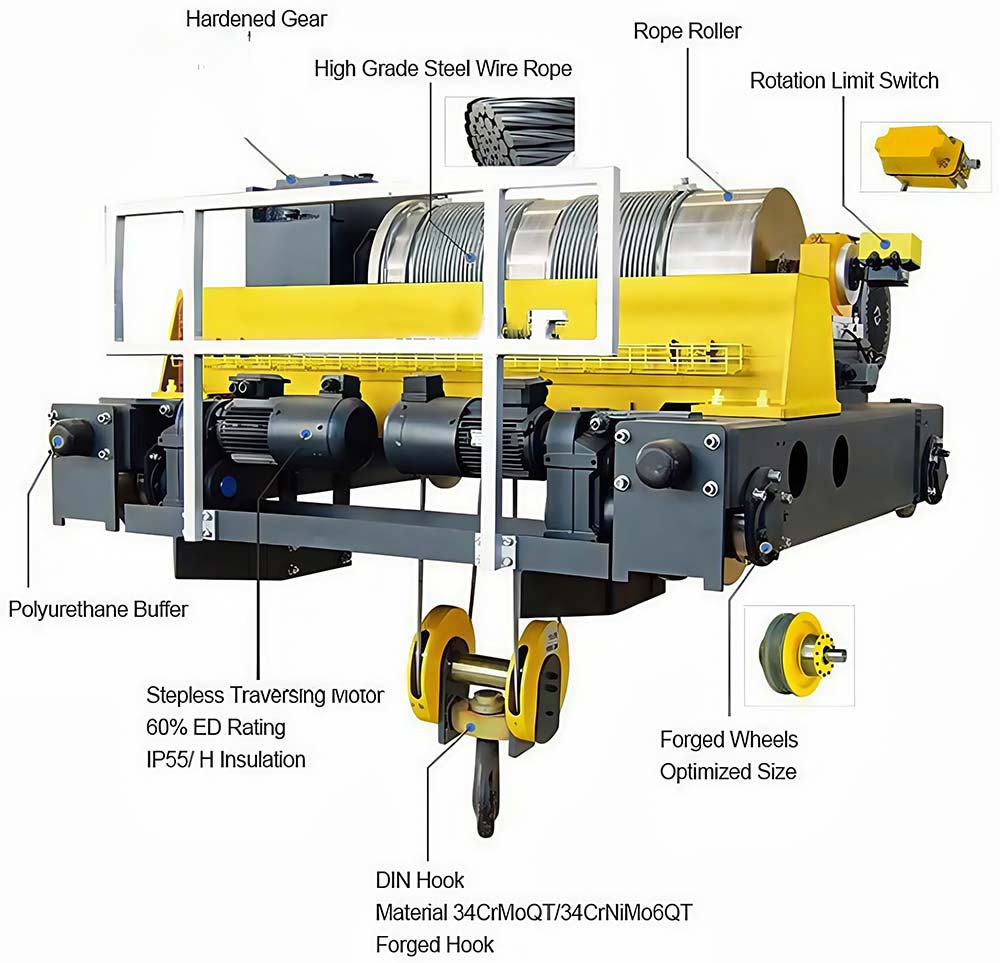

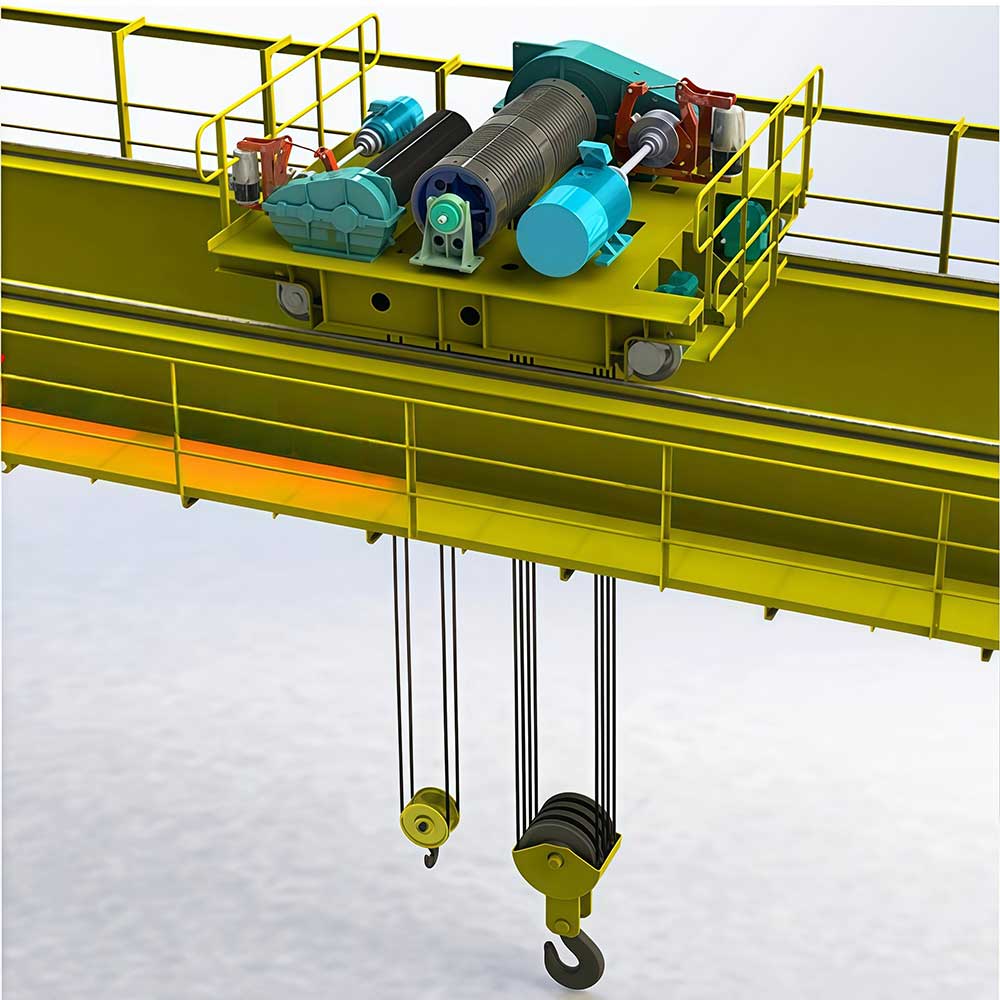

Double girder electric winch trolley is widely used in double girder bridge crane and double girder gantry crane to be treated as the lifting and cross travel mechanism. It is mainly composed of fixed electric hoist, trolley, motor, brake, buffer, wheel, etc.

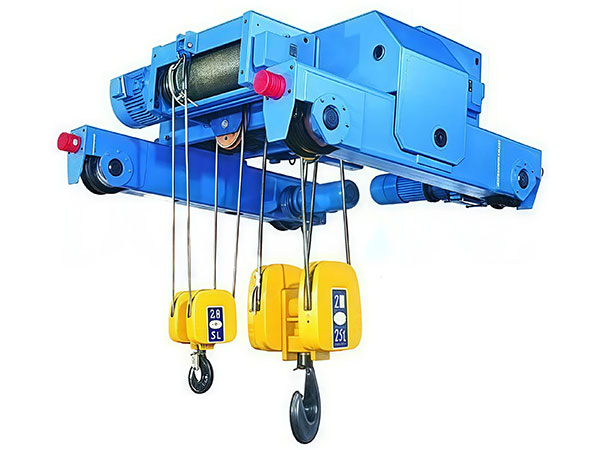

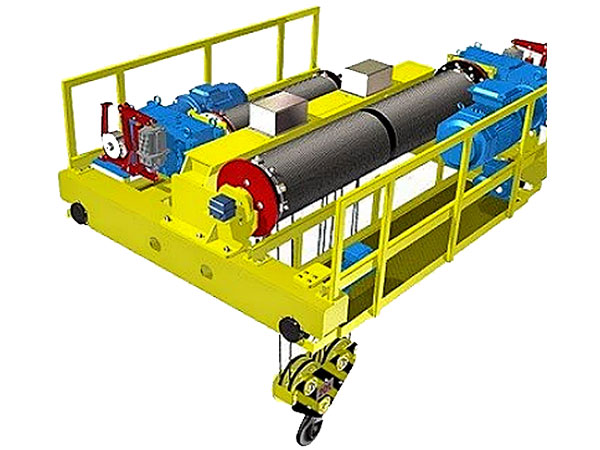

Sometimes there are 2 sets of electric hoist fixed on same trolley to meet the requirement of main lift and auxiliary lift.
The electric double-girder crane trolley with superior performance, compact structure, light weight, safe, reliable and efficient operation, and can meet various working conditions. Choosing a double-girder crane trolley can improve production efficiency, reduce routine maintenance, save energy consumption, and achieve a better return on investment.
The double-beam hoist trolley produced can be operated by ground operation, remote control or driver’s cab, which greatly improves the work efficiency of the workshop.
|
Tonnage
|
Model
|
Velocity(m/min)
|
Brake
|
Motor(kw)
|
Pull(kN)
|
Weight
|
Rope capacity
|
|
0.5
|
triaxial
|
35-38
|
Electromagnetic
|
3
|
5
|
90
|
80-120
|
|
triaxial
|
25-28
|
Electromagnetic
|
3
|
5
|
90
|
80-120
|
|
|
1.5
|
triaxial
|
25-28
|
Electromagnetic
|
7.5
|
15
|
220
|
100-200
|
|
triaxial
|
35-38
|
Electromagnetic
|
7.5
|
15
|
220
|
100-200
|
|
|
four axis
|
15-18
|
Electromagnetic
|
7.5
|
15
|
300
|
100-200
|
|
|
2
|
triaxial
|
25-28
|
Electromagnetic
|
11
|
20
|
270
|
100-200
|
|
triaxial
|
35-38
|
Electromagnetic
|
11
|
20
|
270
|
100-200
|
|
|
four axis
|
15-18
|
Electromagnetic
|
11
|
20
|
300
|
100-200
|
|
|
5
|
four axis
|
22-25
|
Hydraulic
|
18.5
|
50
|
900
|
150-300
|
|
four axis
|
12-14
|
Hydraulic
|
18.5
|
50
|
900
|
150-300
|
If you want to get a price of our Double girder electric winch trolley, please help to confirm the details as below:
1. lifting capacity?Which goods the winch pulling?
2.cable diameter?
3.cable length?
4.rope speed?
5.voltage: 380V, 50hz, 3phase ok for you?
6.how to use the winch(lifting or horizonal pulling?)
1. Heavy Manufacturing Industries
Used in steel mills, foundries, and metal fabrication plants.Lifts steel coils, billets, ingots, and finished products.Designed for high temperatures, dust, and extreme working conditions.
2. Warehousing & Logistics
Installed in large warehouses and distribution centers for material handling.Moves palletized goods, heavy machinery, and containers efficiently.Ensures fast and safe lifting operations in high-capacity warehouses.
3. Shipbuilding & Marine Industry
Used in dockyards, shipyards, and offshore platforms for heavy lifting. Moves large ship sections, engines, and marine components.Works in coastal environments with corrosion-resistant materials.
4. Construction & Infrastructure Projects
Installed in bridge construction cranes, precast beam lifters, and tunneling projects.Handles precast concrete segments, steel structures, and heavy beams.Provides high lifting capacity and long travel distances.
5. Mining & Power Plants
Used in coal handling systems, power station maintenance, and turbine lifting.Supports safe lifting of generators, transformers, and mining equipment.Built for harsh conditions with dust-proof and explosion-proof features.
6. Railway & Transportation Hubs
Installed in rail yards, metro construction, and cargo handling.Moves train bogies, railway tracks, and large transport components.Ensures precise lifting and positioning for efficient assembly.
All kinds of Overhead Crane, Gantry Crane, Electric Hoist, Transfer Cart, Industrial Electric Winch, Radial/Flat Gate Hoist, Steel Gate, etc.
Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Specific parameters such as lifting capacity, lifting height, span, cantilever length if have, power supply voltage, control method, etc.
Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
Before the delivery, every products will be tested. We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate for each crane. You are also warmly welcomed to come to our factory for inspection.
Yes, we have a professional installation team and have been to manycountries to assist in installation. lfyou need us to provide this service,pleaselet us know in advance and we will provide you with the best solution.
We have after-sales team to support you for 24hours.
Safest package chosen to protect your goods during transportation.
