| Brand | EXCELLENT |
| Lifting Capacity | 5-400t |
| Lifting Height | 1-15m |
| Span Length | 0-28m |
| Working Duty | A7-A8 |
| Work Environment | high temperature, high dust and harmful gases, and has thermal radiation |
| Certificate | CE, ISO |
| Place of Origin | Henan, China |

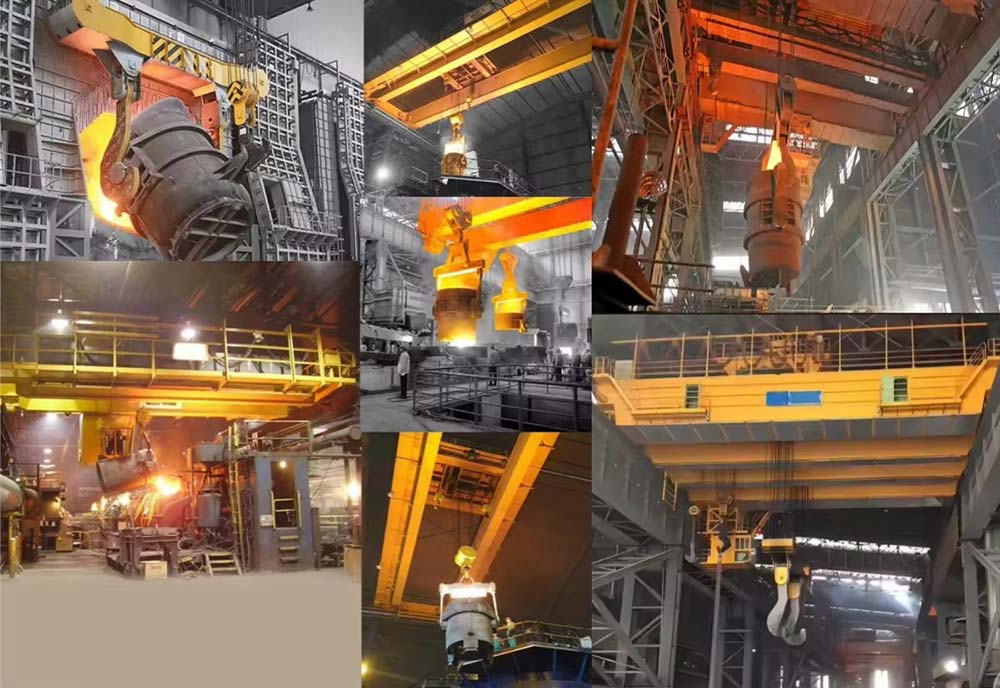

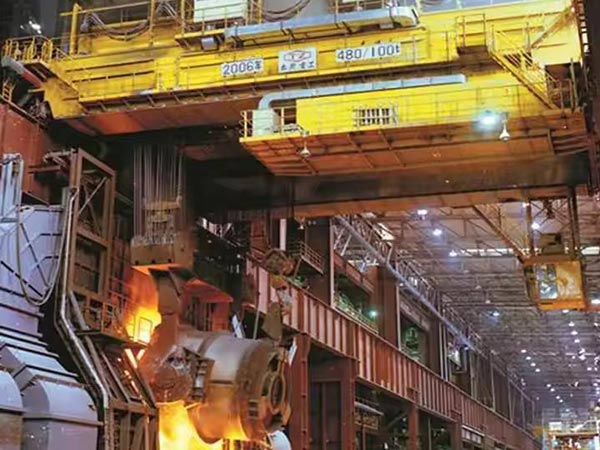

Foundry iron casting crane is one of the main equipment in the continuous casting technology of steel manufacturing. It is mainly used for smelting metal transporter, casting and hot metal charging.

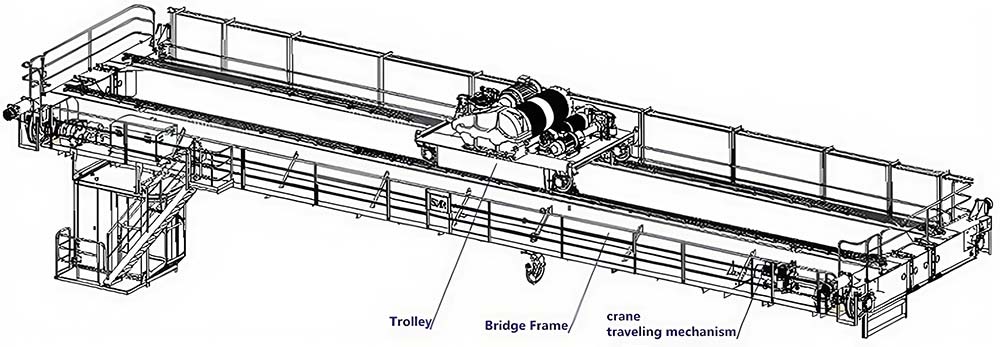

It is mainly composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.

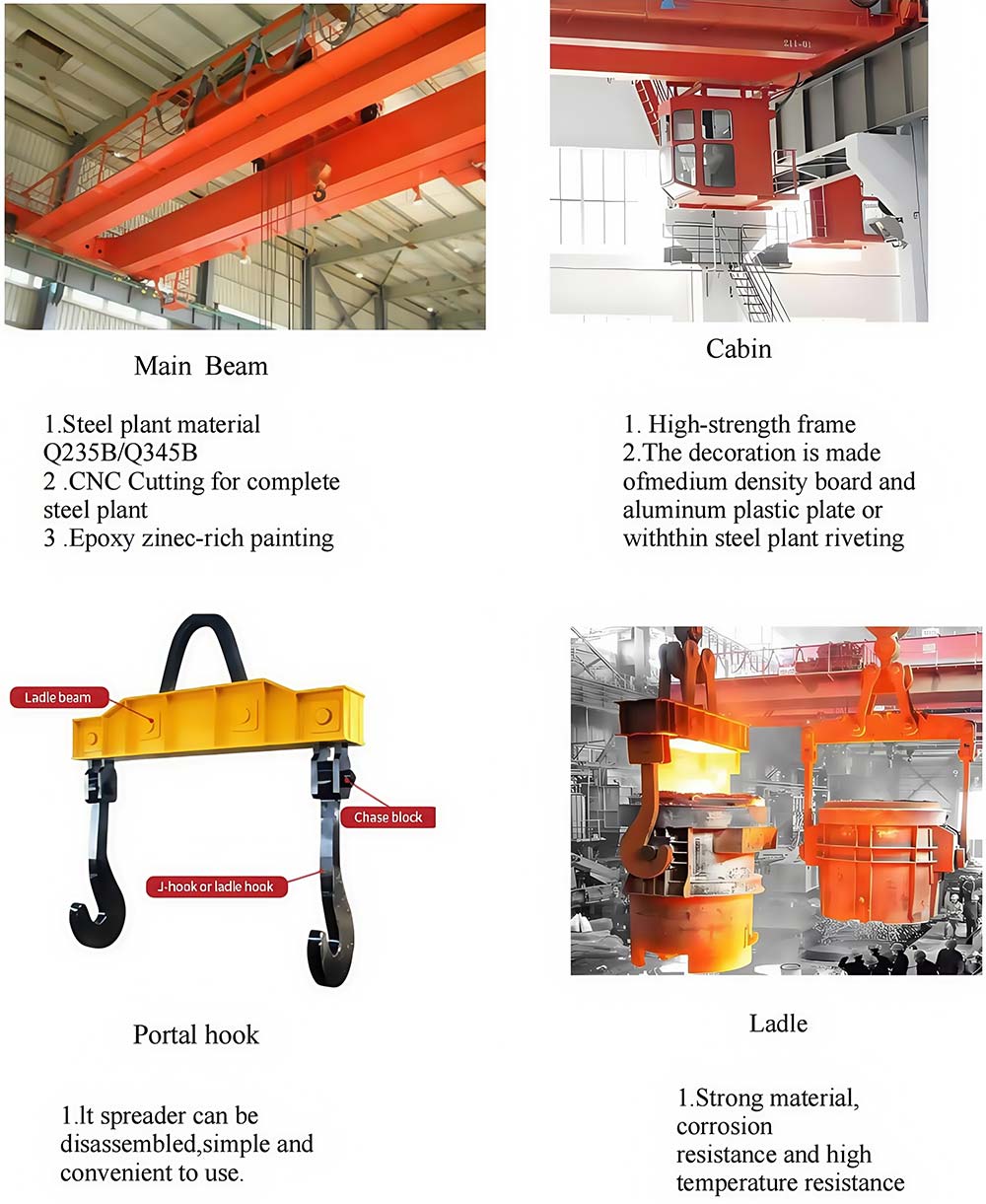

1. Strong beams. The crane beams are of welded construction. This result in lower dead weight with a high degree of vertical and horizontal rigidity and smaller wheel loads.
2. End carriage: Crane travelling system, Motor-Reducer-Wheel driven system! motor used soft start motor which result in very stable starting!
3. Durable performance and High efficiency!
4. Outstanding heat resistance with thermal-protective coating added at the bottom of the main beam!
5. Modern cabin control with Air conditioner to separate operators from harsh environment
6.Electrical equipment: Electric systems are Siemens brand or Schneider brand!
7. Long service life with a low-maintenance!
|

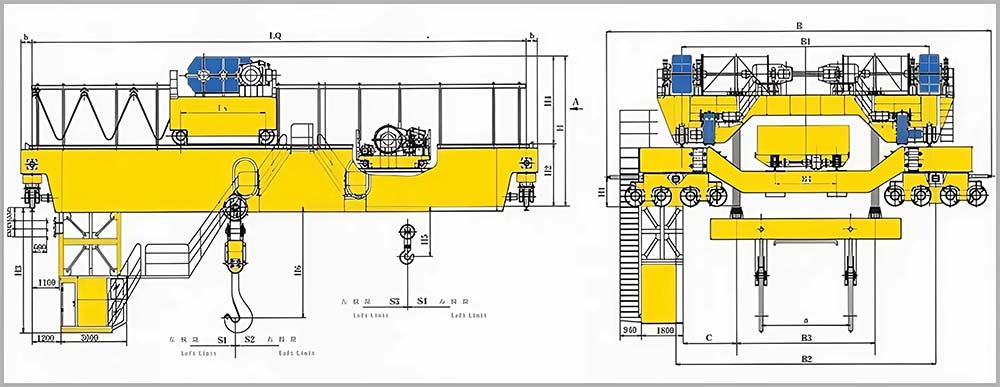

Capacity(T)
|
5
|
10
|
16
|
20
|
32
|
50
|
|
Span(m)
|
10.5~31.5
|
|||||
|
Lifting height(m)
|
6~12
|
|||||
|
Work Duty
|
M5
|
|||||
|
Lifting speed(m/min)
|
0.8/5
|
0.8/5
|
0.66/4
|
0.53/3.4
|
0.8/3.3
|
0.53/3.2
|
|
Hoist speed(m/min)
|
2~20
|
|||||
|
Crane Speed(m/min)
|
3~30
|
|||||
|
Working Temperature(℃）
|
-25~40
|
|||||
If you want to get a price of our foundry iron casting crane, please help to confirm the details as below:
1. Lift capacity? (5ton 10ton 16ton or others?)
2. Lift height? (3m 6m 9m 12m..?)
3. The span?(The distance between the rail center)
4. Crane travel length?(If travel rails and bus bar needed, please supply this information)
5. Power supply in your local? (Is 380V/50Hz/3P?)
6. Nearest sea port? We will quote you a CFR price for your reference.

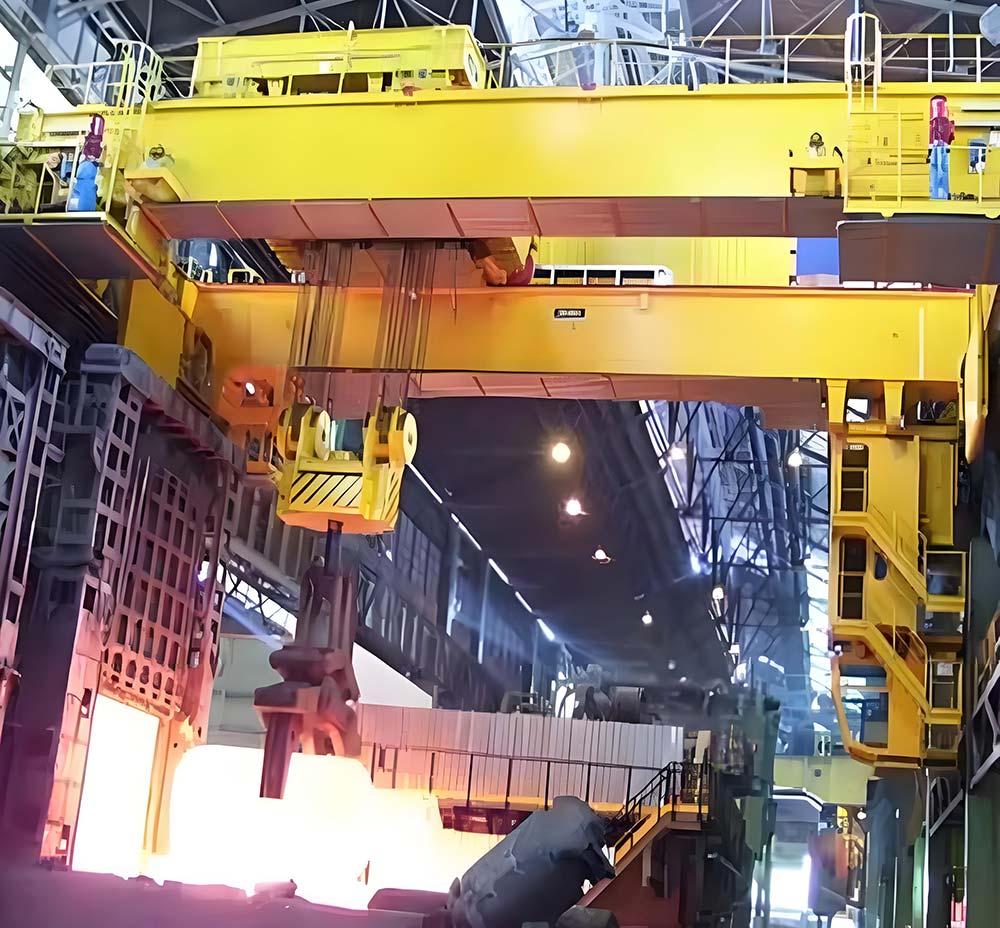

Double girder foundry crane is a heavy-duty overhead crane specifically designed for steel mills, foundries, and metallurgical industries. These cranes operate in extreme environments where high temperatures, molten metal handling, and heavy lifting are required.
1. Molten Metal Handling
Used in steel making and foundry operations to lift and transport molten metal ladles between different process stages (e.g., from furnaces to casting molds). Designed to withstand extreme heat, dust, and harsh working conditions. Features heat-resistant components, such as motors, cables, and hooks.
2. Charging the Furnace
Foundry cranes help in charging electric arc furnaces (EAFs), induction furnaces, and converters by lifting and pouring raw materials like scrap metal and pig iron into the furnace. Special attachments like ladle hooks, lifting tongs, or electromagnets ensure safe handling of materials.
3. Transporting Hot Metal

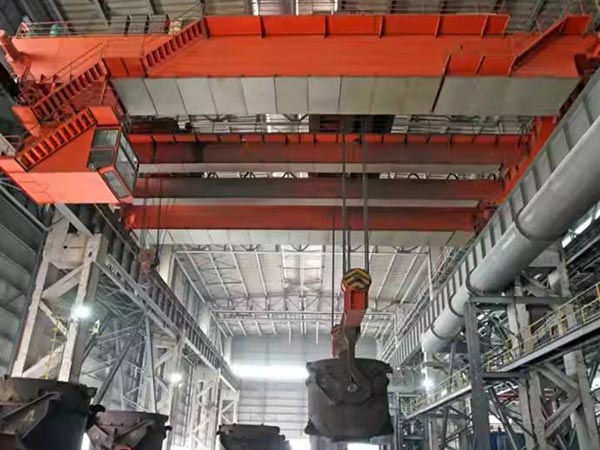

These cranes move molten metal ladles from one station to another, such as from the furnace to the casting bay. Ladle tilting mechanisms allow for controlled pouring of molten metal into molds.
4. Casting and Pouring
In continuous casting or ingot casting operations, foundry cranes assist in precise positioning of molten metal ladles to fill
casting molds efficiently and safely. Helps in minimizing spillage and ensures uniform metal distribution.
5. Finished Product Handling
Moves heavy castings, ingots, slabs, or billets from the casting area to storage or further processing units. Can be equipped with lifting beams, hooks, or clamps to handle different shapes and weights.
All kinds of Overhead Crane, Gantry Crane, Electric Hoist, Transfer Cart, Industrial Electric Winch, Radial/Flat Gate Hoist, Steel Gate, etc.
Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Specific parameters such as lifting capacity, lifting height, span, cantilever length if have, power supply voltage, control method, etc.
Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
Before the delivery, every products will be tested. We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate for each crane. You are also warmly welcomed to come to our factory for inspection.
Yes, we have a professional installation team and have been to manycountries to assist in installation. lfyou need us to provide this service,pleaselet us know in advance and we will provide you with the best solution.
We have after-sales team to support you for 24hours.
Safest package chosen to protect your goods during transportation.
Alibaba pay、 Alibaba Trade Assurance、T/T、L/C.
