| Brand | EXCELLENT |
| Weight | 8000kg |
| Lifting Height | 1-15m |
| Span Length | 18-35m |
| Working Duty | A5-A8 |
| Work Environment | workshop, factory, construction site |
| Certificate | CE, ISO |
| Place of Origin | Henan, China |

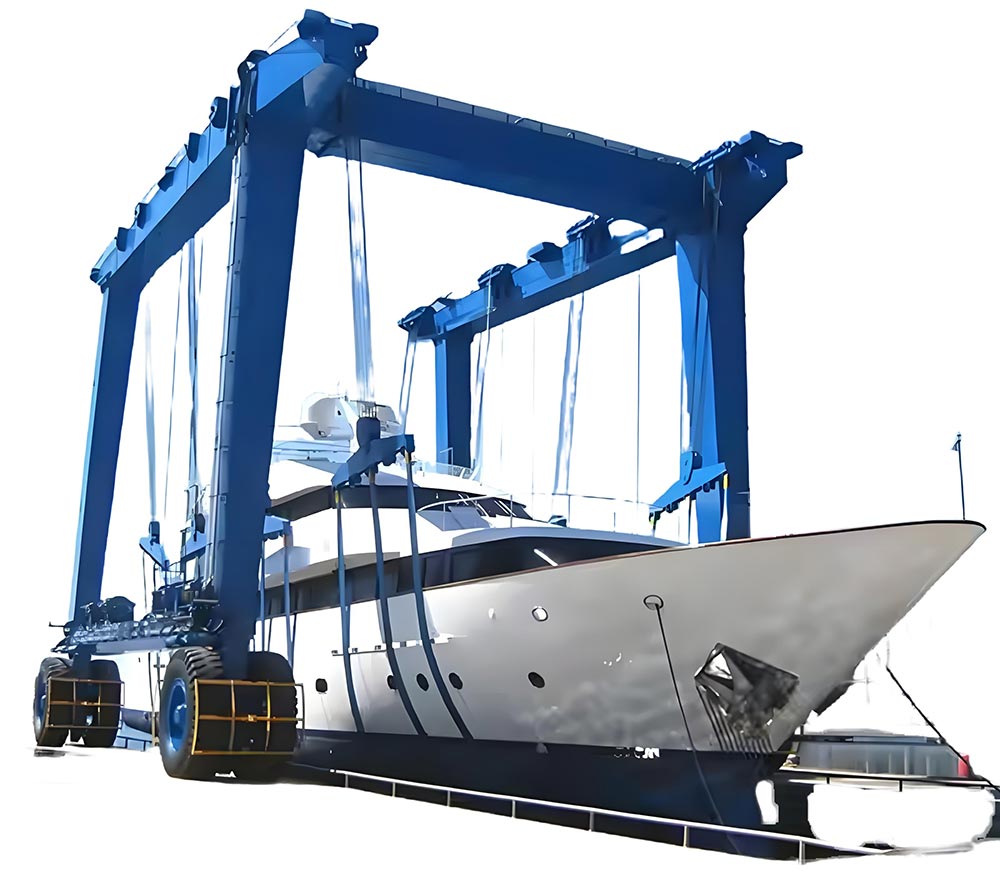

Mobile boat hoist crane also known as marine mobile boat lifts, are mainly used to lift boats or yachts at wharves and shipyards. The boat lift gantry crane includes the main structure, traveling wheel blocks, hoisting mechanism, steering mechanism, hydraulic transmission system, electric control system.
Mobile Travel Lift Cranes have a wide range of capacities from 20 to 1,200 ton. We offer professional customized design depending on the specific need.
1. For the crane traveling, it can move in diagonal direction, it also can steer in 90 degree or do pivot steering, it also can put the boat in any designated position according to requirements
2. Main girder can adjust the span according to the boat width for handling different width boat.
3. Low expenses, high performance, easy to operate and maintenance etc.
4. Low cost on the daily operation, it adopts the soft&firm belt to ensure no harm to the boat when hoisting
5. It can make the boat in order quickly, it also can adjust the gap between each boat according to different condition, reducing the wasted space.
|
Rated Capacity(T)
|
100
|
150
|
200
|
300
|
|
Grounding Sepcific Pressure(KG/M)
|
11.5
|
11
|
11.5
|
6.5
|
|
Grade Ability(M/Min)
|
2%
|
4%
|
4%
|
4%
|
|
Lifting Speed(M/Min)–Full Load
|
0~2
|
0~1
|
0~2
|
0~1
|
|
Lifting Speed(M/Min)–Non Load
|
0~5
|
0~4
|
0~3
|
0~3
|
|
Traveling Speed(M/Min)–Full Load
|
0~20
|
0~20
|
0~20
|
0~20
|
|
Traveling Speed(M/Min)–Non Load
|
0~35
|
0~35
|
0~35
|
0~35
|
|
Working Ambient Temperature
|
-20°C~+500C
|
|||
If you want to get a price of our Mobile Boat Hoist Crane, please help to confirm the details as below:
1. The capacity?
2. The travel lift size and weight?
3.The Dock size ? yard size?
1. Boat Launching & Retrieval: Used in marinas, harbors, and shipyards to lift boats from the water for storage or maintenance.Capable of handling small fishing boats to large yachts and commercial vessels.Designed for smooth and safe launching/retrieval, reducing damage risks.
2. Boat Transportation: With in a ShipyardMoves boats between repair docks, dry storage areas, and maintenance facilities.Allows precise positioning using adjustable slings and hydraulic steering systems.Ideal for shipbuilders and repair companies needing efficient boat movement.
3. Vessel Maintenance & Repair: Lifts boats for hull cleaning, painting, engine repairs, and inspections.Used in boat repair yards and dry docks for long-term servicing.Offers stable lifting, ensuring safety during maintenance operations.
4. Seasonal Boat Storage: Common in regions with harsh winters, allowing boat owners to store vessels safely on land.Prevents hull damage from ice, saltwater corrosion, and marine growth.Enables stacked storage, optimizing space in marina facilities.
5. Commercial & Military Ship Handling: Used for navy vessels, fishing boats, patrol boats, and commercial ships.Helps in quick deployment and maintenance of operational vessels.Supports heavy-duty lifting, often handling boats over 100 tons.
All kinds of Overhead Crane, Gantry Crane, Electric Hoist, Transfer Cart, Industrial Electric Winch, Radial/Flat Gate Hoist, Steel Gate, etc.
Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Specific parameters such as lifting capacity, lifting height, span, cantilever length if have, power supply voltage, control method, etc.
Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
Before the delivery, every products will be tested. We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate for each crane. You are also warmly welcomed to come to our factory for inspection.
Yes, we have a professional installation team and have been to manycountries to assist in installation. lfyou need us to provide this service,pleaselet us know in advance and we will provide you with the best solution.
We have after-sales team to support you for 24hours.
Safest package chosen to protect your goods during transportation.
Alibaba pay、 Alibaba Trade Assurance、T/T、L/C.
