| Brand | EXCELLENT |
| Lifting Capacity | 5-40.5 ton |
| Lifting Height | 5-31.5m |
| Span Length | 5-31.5m |
| Weight | 3000kg |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear |
| Warranty of core components | 1 Year |
| Place of Origin | Henan, China |

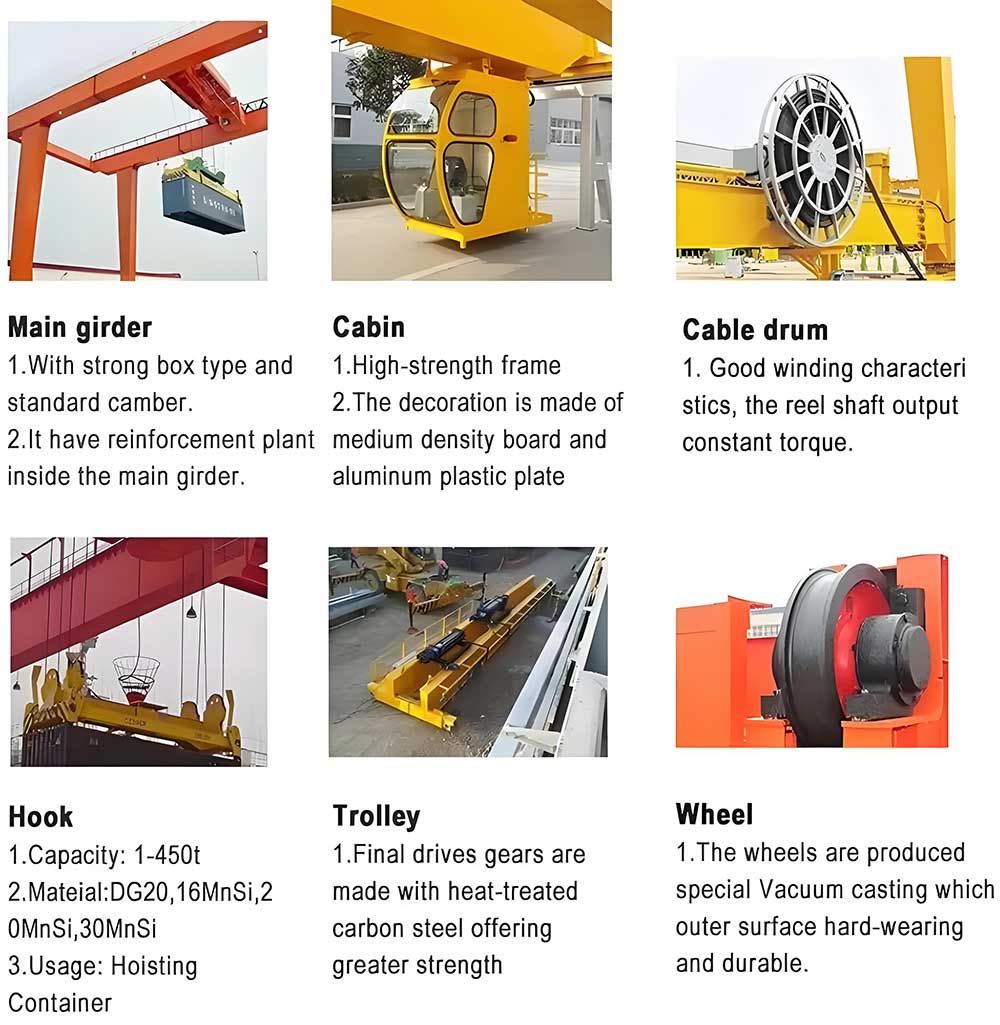

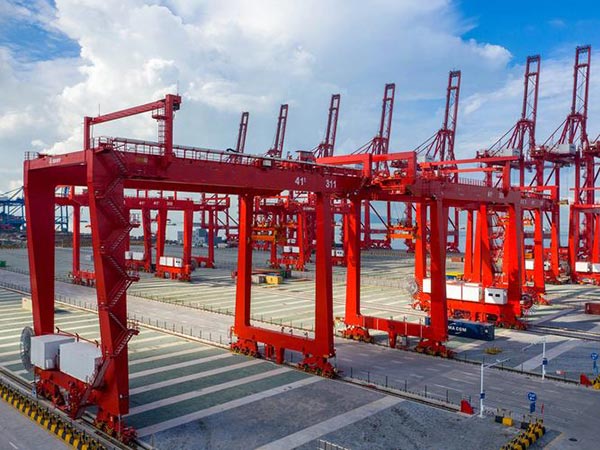

Rail mounted container gantry crane are commonly used for lifting and unloading work outside warehouses or next to railways. This kind of crane is composed of bridge, support legs, crane travelling organ, trolley, electric equipment,strong lifting winch.

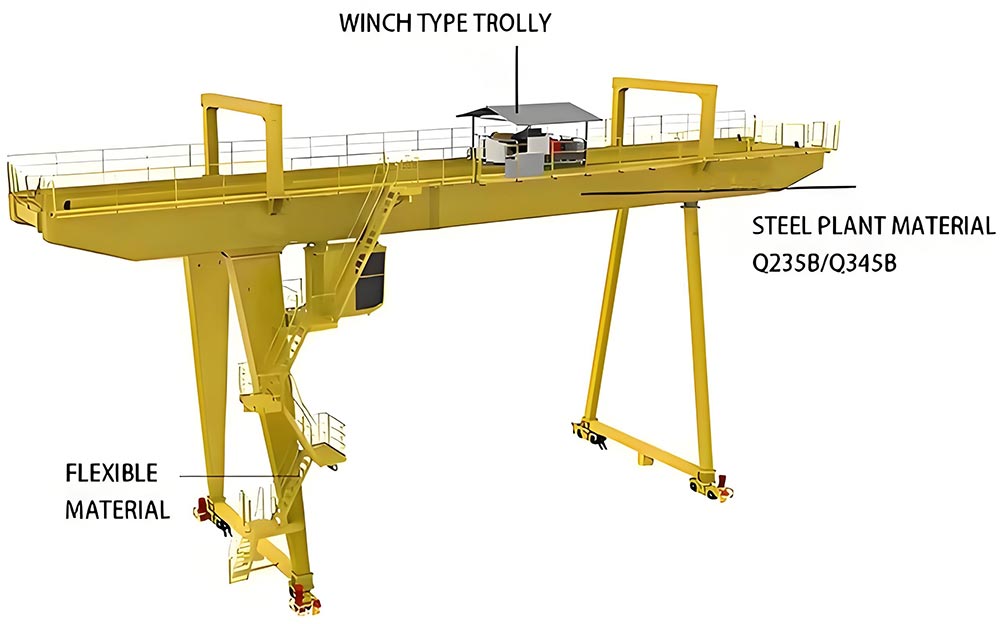

Rail mounted container gantry crane is a standard mobile gantry crane consist of a two legged A-frame support the trolley adopt flexible cable conductive, the gantry adopt slide wire or flexible cable conductive. It is ideal for outdoor applications where lifting facilities are provided, without the cost of a building or any supporting steelwork.
Efficient Container Handling
Rail mounted gantry crane are optimized for quick loading, unloading, and stacking, reducing turnaround times in container and intermodal yards.
High Load Capacity
Built for strength, Gantry crane for bridge construction can lift heavy cargo loads, often handling 20 tons to over 100 tons based on customization and application requirements.
Enhanced Space Utilization
Ideal for high-density stacking, they allow optimal use of space, crucial for container terminals and storage facilities.
Environmental Efficiency
Powered by electricity, Gantry crane for bridge construction provide energy-efficient operation with reduced emissions, making them suitable for eco-sensitive environments.
Cost-Efficiency
Due to their low operating and maintenance costs, Gantry crane for bridge construction are a cost-effective solution for high-volume operations.
|
Capacity of Spreader
|
t
|
30.5
|
35
|
40.5
|
50
|
|||
|
Working Duty
|
A6
|
A6
|
A6
|
A6
|
||||
|
Span(m)
|
S
|
35
|
35
|
35
|
35
|
|||
|
Bast(m)
|
B
|
16
|
16
|
16
|
16
|
|||
|
Lifting Height
|
H
|
15.4
|
15.4
|
18.2
|
18.2
|
|||
|
Speed
|
Hoisting |
with Full Foad
|
m/min
|
12
|
12
|
18
|
18
|
|
|
Only with Spreader
|
24
|
24
|
36
|
36
|
||||
|
Travese
|
60
|
60
|
70
|
70
|
||||
|
Traveling
|
45
|
45
|
45
|
45
|
||||
|
Total Power
|
KW
|
~200
|
~230
|
~255
|
~300
|
|||
|
Max.working Load of Wheel
|
KN
|
260
|
260
|
280
|
300
|
|||
|
Crane Rail
|
P50
|
P50
|
P50
|
QU80
|
||||
|
Power Supply
|
3-phase AC 50Hz 380V
|
|||||||
If you want to get a price of our Rail mounted gantry crane, please help to confirm the details as below:
1. the capacity: 35?
2. the span: ?
3. the lifting height: ?
4. have cantilever or not?
5. the voltage: is 380v, 50 hz, 3 phase ok for you?
6. The crane lifting which goods which type container? how many containers to pile? where the crane use, port or store?
7. the working class? how many hours it will work per 24 hours? the work intervel?
8. rubber tyre crane wheel?

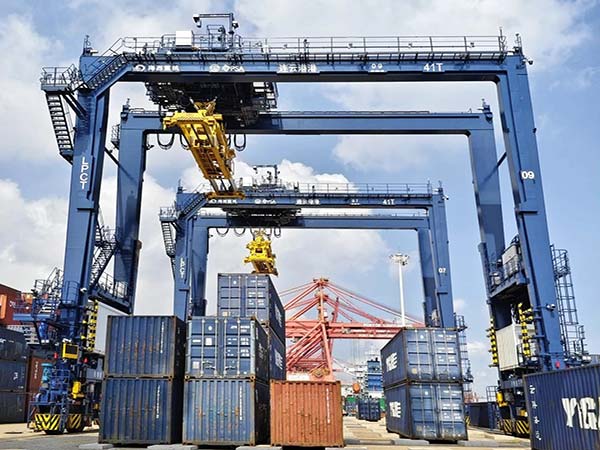

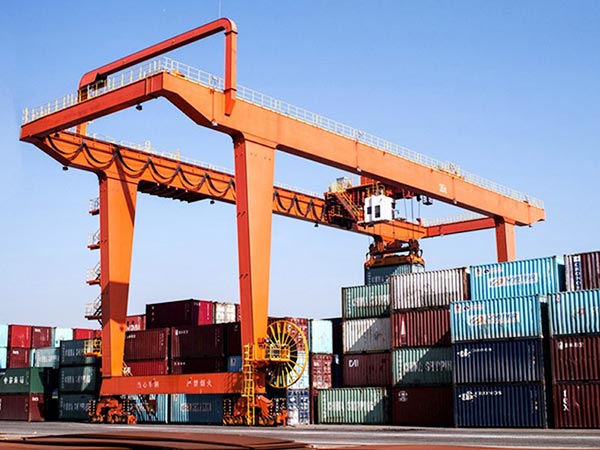

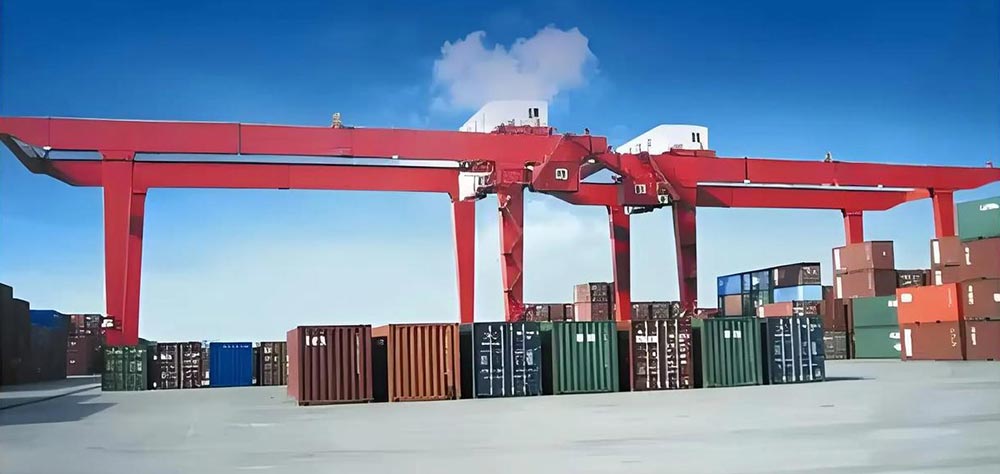

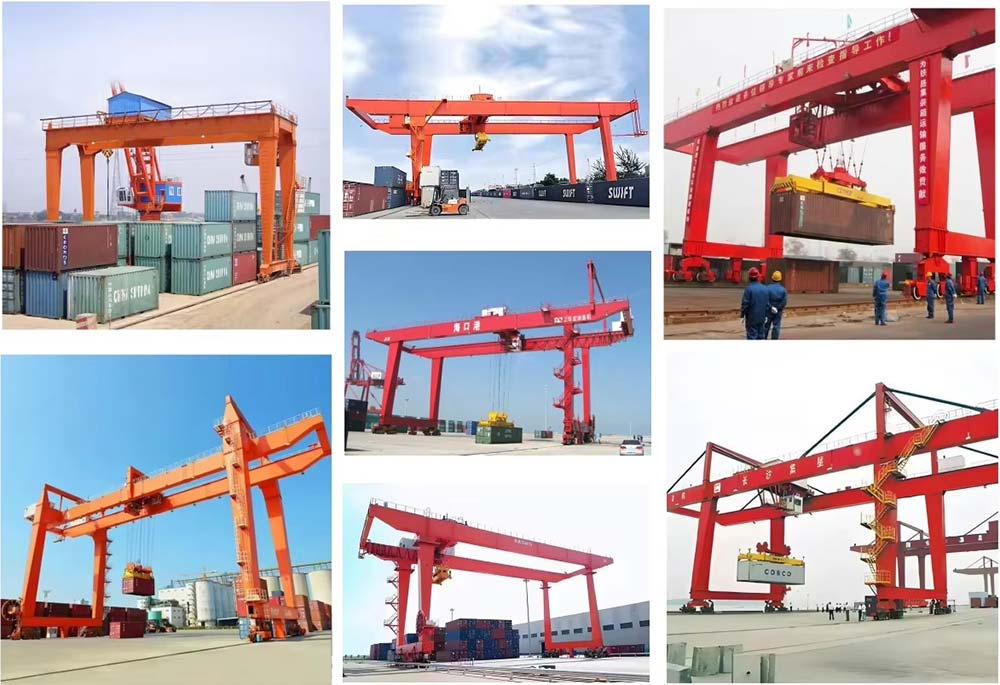

1. Container Handling in Ports & Terminals
Main application in container yards, seaports, and inland terminals. Used for stacking and transferring shipping containers from rail cars, trucks, or storage areas. Works in combination with ship-to-shore (STS) cranes for seamless cargo flow. Increases port efficiency with automated operation and remote control features.

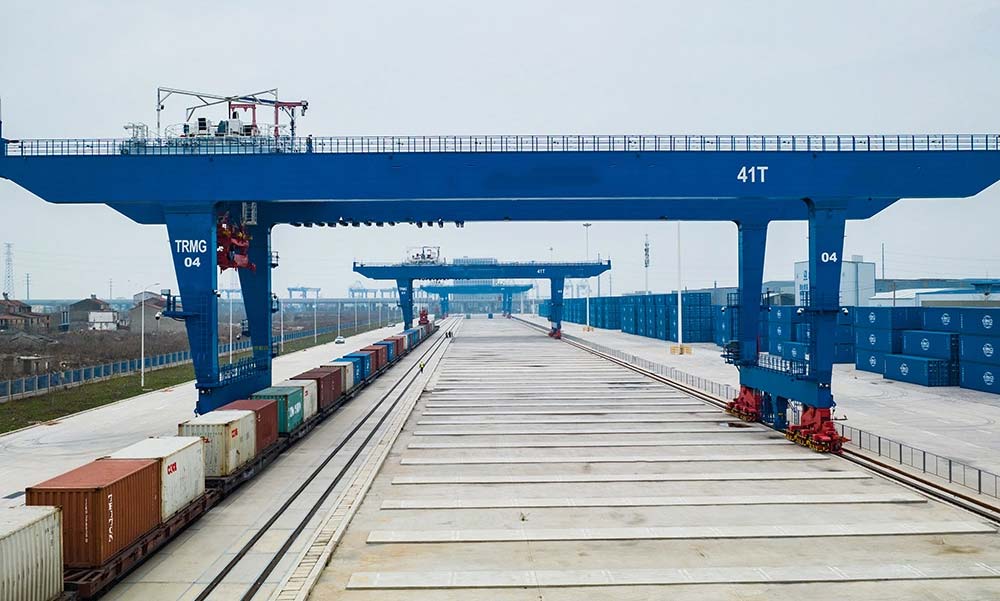

2. Intermodal Rail Yards
Transfers containers between trains and trucks in rail freight terminals.Enables fast and efficient rail-to-road cargo movement, reducing downtime.Often equipped with automated container tracking systems to optimize logistics.
3. Steel & Metal Industries
Moves steel coils, metal plates, and large industrial parts in manufacturing plants.Ensures safe and precise heavy-duty lifting in steel production yards.Designed to handle extreme loads (100+ tons) with specialized lifting attachments.
4. Construction & Infrastructure Projects
Used for handling precast concrete segments, bridge girders, and beams.Helps in highway, railway, and large-scale building construction.Provides stability and precision, especially in megaprojects requiring repetitive heavy lifting.
5. Power Plants & Heavy Engineering
Used in nuclear, thermal, and hydroelectric power plants for moving heavy equipment.Lifts and positions transformers, turbines, and power plant components.Ensures safe, stable, and high-capacity lifting in restricted areas.
6. Shipbuilding Industry
Moves large ship parts, hulls, and engines in shipbuilding yards. Handles oversized components with precision and control.Works alongside portal cranes and floating docks for seamless assembly.
7. Mining & Bulk Material Handling
Transports ore, coal, and bulk materials in mining and industrial storage areas.Works in conjunction with conveyors and automated loading systems.Heavy-duty design allows continuous operation in extreme conditions.
All kinds of Overhead Crane, Gantry Crane, Electric Hoist, Transfer Cart, Industrial Electric Winch, Radial/Flat Gate Hoist, Steel Gate, etc.
Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Specific parameters such as lifting capacity, lifting height, span, cantilever length if have, power supply voltage, control method, etc.
Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
Before the delivery, every products will be tested. We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate for each crane. You are also warmly welcomed to come to our factory for inspection.
Yes, we have a professional installation team and have been to manycountries to assist in installation. lfyou need us to provide this service,pleaselet us know in advance and we will provide you with the best solution.
We have after-sales team to support you for 24hours.
Safest package chosen to protect your goods during transportation.
Alibaba pay、 Alibaba Trade Assurance、T/T、L/C.
