| Brand | EXCELLENT |
| Lifting Capacity | 5-40t |
| Lifting Height | 3-18m |
| Span Length | 5-28m |
| Work Duty | M3~M5 |
| Protection Class | IP55 |
| Working Temperature | -20~+40℃ |
| Certificate | CE, ISO |
| Place of Origin | Henan, China |

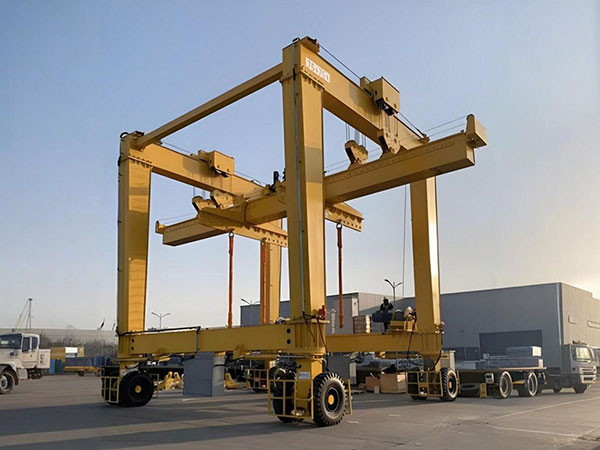

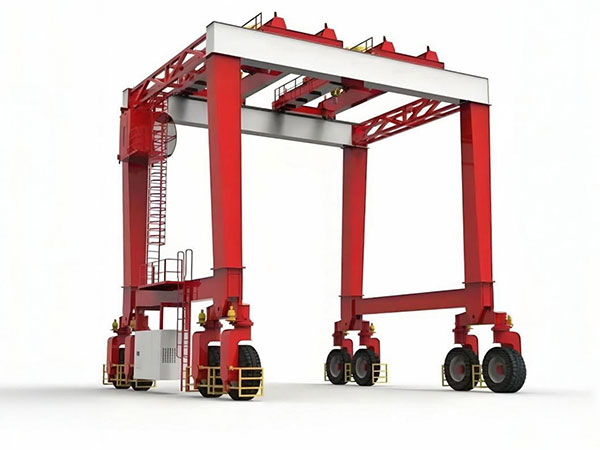

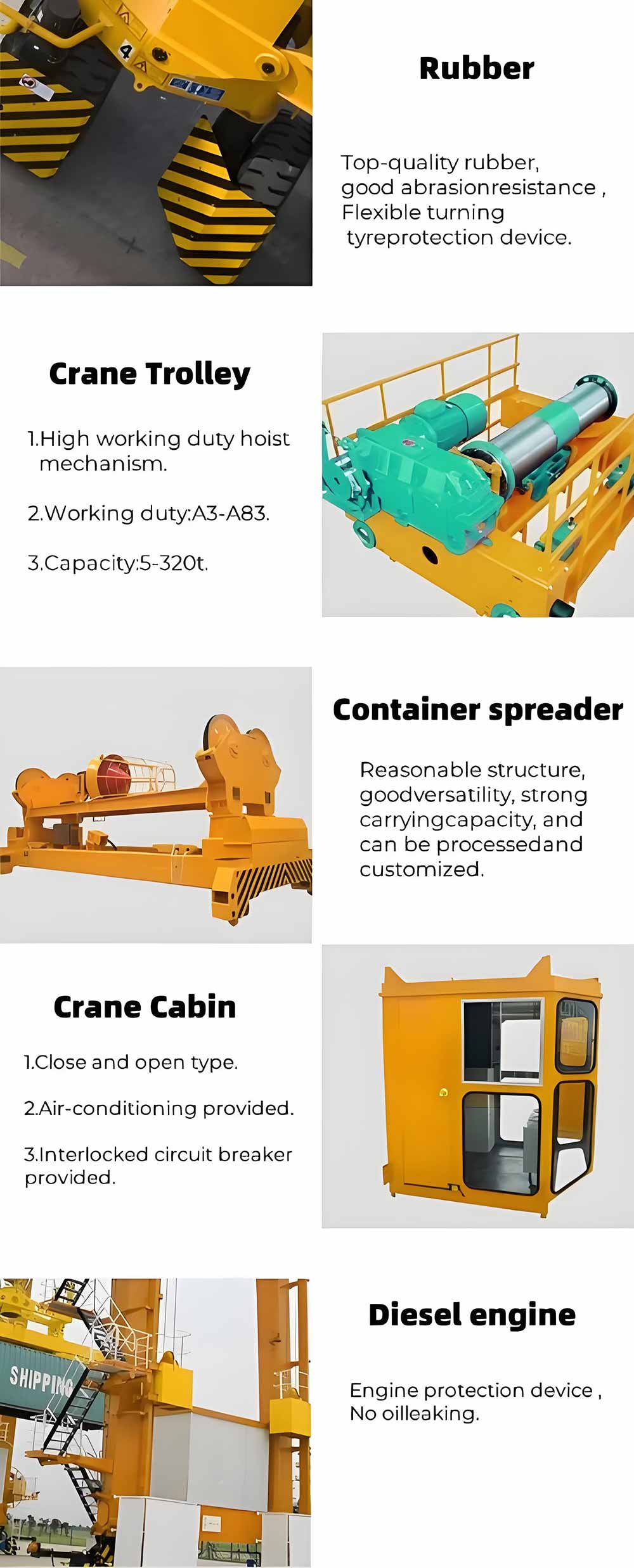

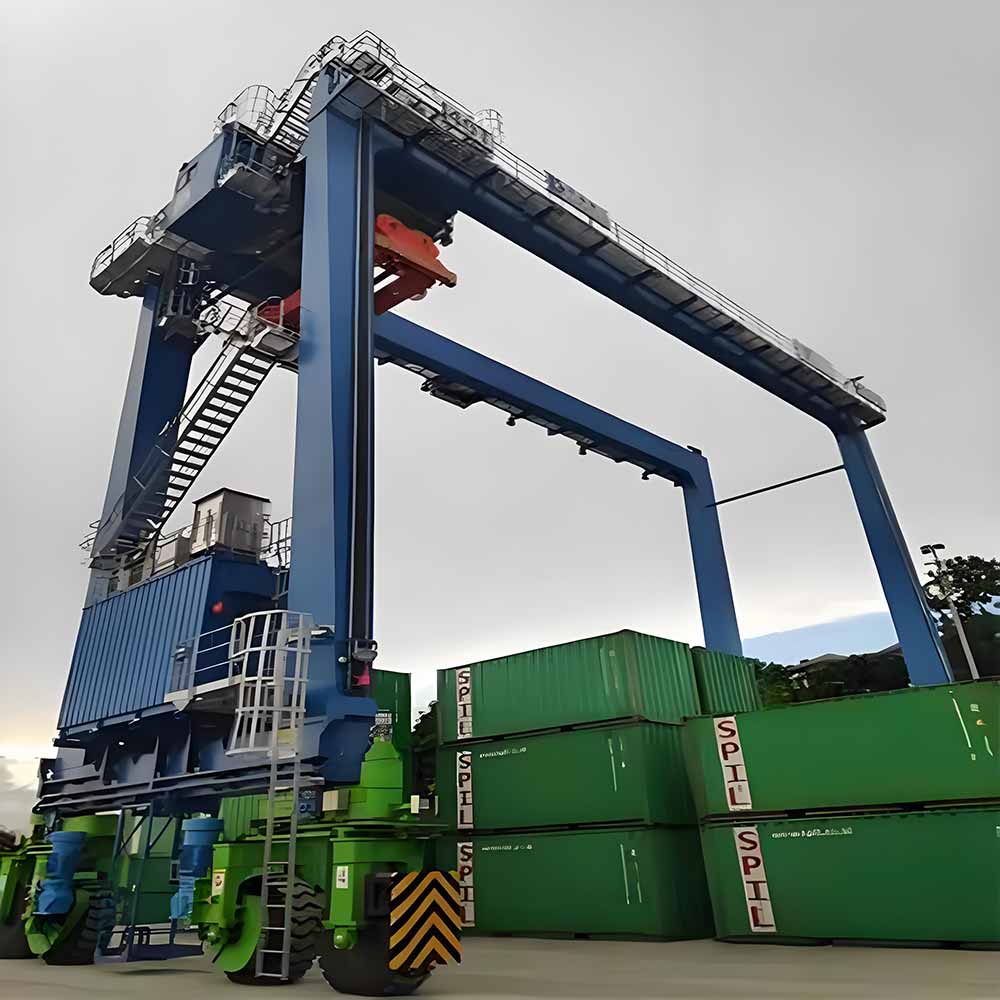

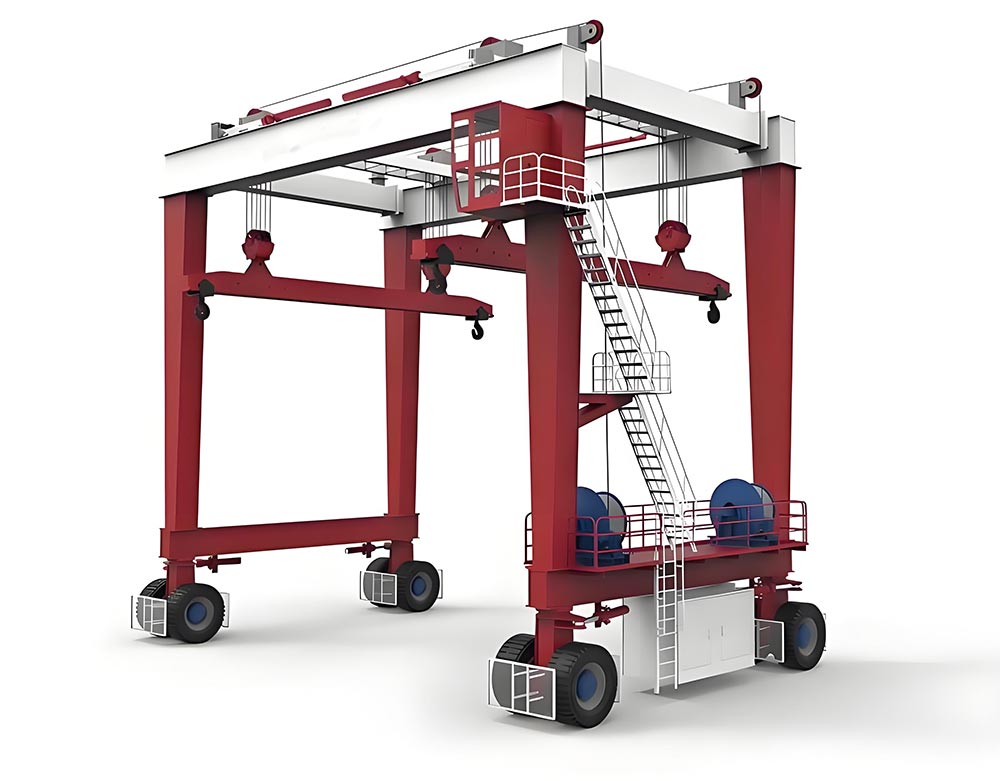

Rubber tyre gantry gantry cranes suitable for port, wharf, logistics and other container yard or transfer station of international standard container handling and loading and unloading. It is supported on the inflatable rubber tire, often powered by diesel generator, and can also be powered by cable reel and lithium battery. It is composed of large car mechanism, small car assembly, gantry frame, power system and special container spadders.
1. Mobility
Rubber Tyre: Equipped with rubber tyre, allowing easy movement across different surfaces, including asphalt, concrete, and uneven terrain.
2. Load Capacity
High Lifting Capacity: Available in various models with load capacities typically ranging from 10 to 40 tons or more, suitable for handling heavy containers and equipment.
3. Adjustable Span and Height
Customizable Dimensions: Options for adjusting the span width and lift height to accommodate specific operational needs and site conditions.
4. Flexible Operation
Multi-Directional Movement: Capable of moving in multiple directions, enhancing maneuverability in tight spaces, such as container yards and construction sites.
5. Power Options
Electric or Diesel: Available in electric or diesel-powered configurations to suit different operational environments and preferences.
6. Advanced Control Systems
User-Friendly Controls: Equipped with intuitive control systems, including manual, remote, or automated options for improved operational efficiency.
7. Low Maintenance
Simplified Maintenance: Designed for easy access to key components, facilitating routine maintenance and reducing downtime.
|
Capacity of Spreader
|
t
|
30.5
|
35
|
40.5
|
|||
|
Working Duty
|
A6
|
A6
|
A6
|
||||
|

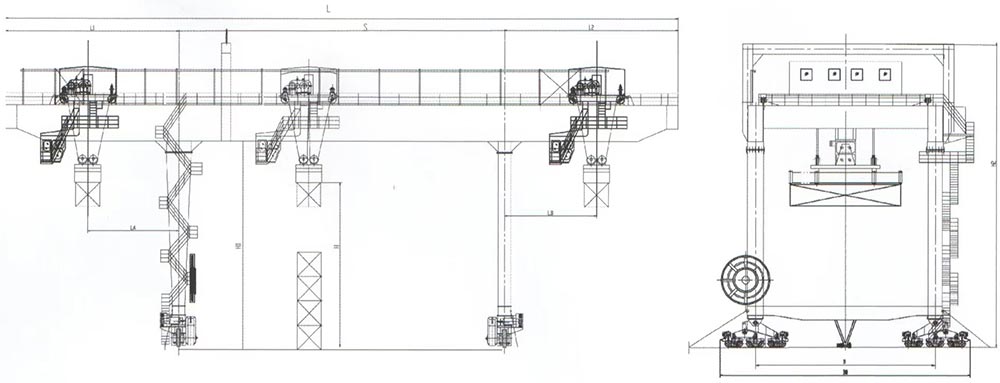

Span(m)
|
S
|
23.47
|
23.47
|
23.47
|
|||
|
Bast(m)
|
B
|
7.4
|
7.4
|
7.5
|
|||
|
Lifting Height
|
H
|
15.4
|
15.4
|
18.2
|
|||
|
Speed
|
Hoisting
|
With Full Load
|
m/min |
12
|
12
|
23
|
|
|
Only With Spreader
|
24
|
24
|
46
|
||||
|
Travese
|
70
|
70
|
70
|
||||
|
Traveling
|
With Full Load
|
45
|
45
|
45
|
|||
|
Only With Spreader
|
90
|
90
|
90
|
||||
|
Total Power of diesel motor
|
KW
|
~305
|
~305
|
~400
|
|||
|
Total power of generator
|
kVA
|
~518
|
~595
|
~720
|
|||
|
Max. working Load of Wheel
|
KN
|
273
|
287
|
320
|
|||
If you want to get a price of our Rubber tyre gantry crane, please help to confirm the details as below:
1. Lifting capacity ______ton
2. Span _______meters (it is center to center distance between railways)
3. Lifting height ______meters (it is the distance from center of hook to floor)
4. Travelling length _____meters
5. Is the cantilever needed for the gantry crane? If yes, how long is it? Is it needed for one or two sides?
6. Industrial voltage _____V, _____HZ, 3Phases
7. Which control mode?
A. pendant control B. remote control C. cabin control

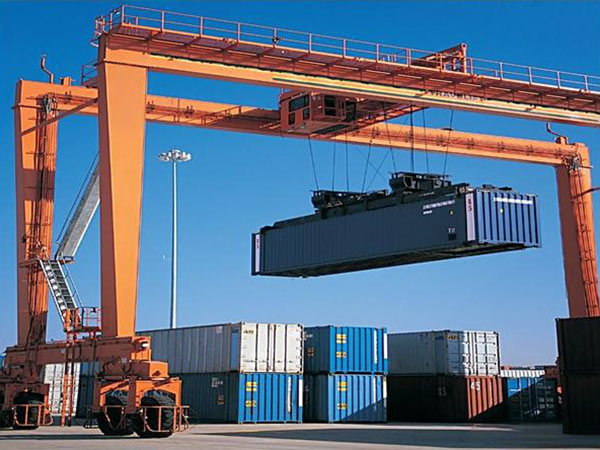

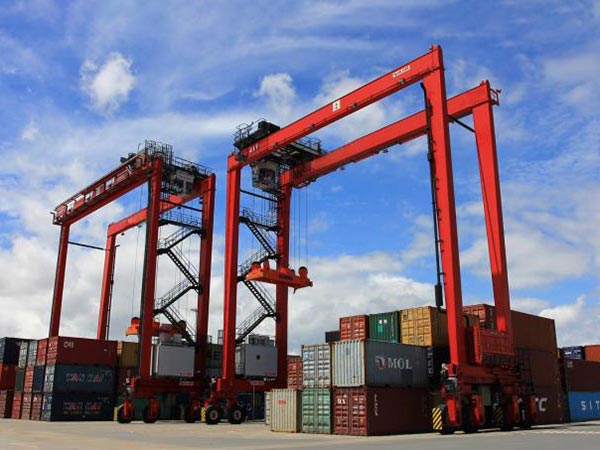

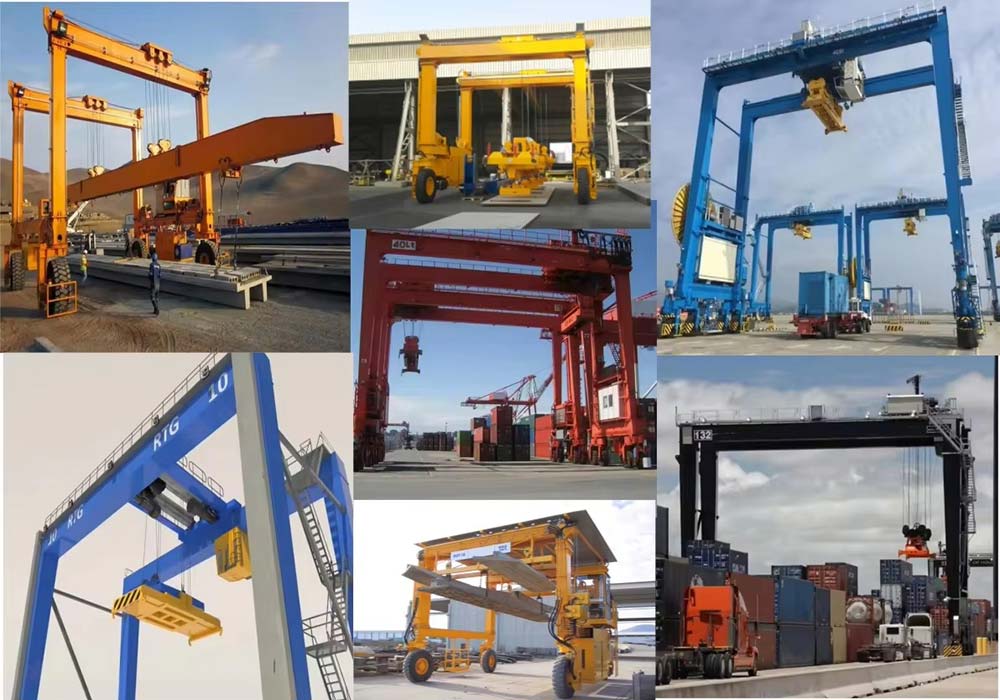

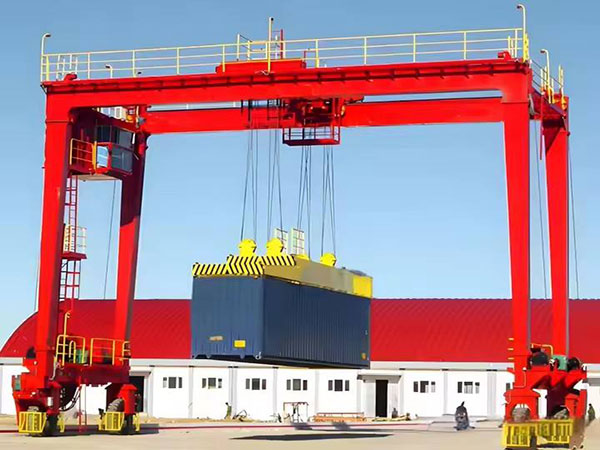

1. Container Handling in Ports & Terminals
Primary application in container yards, seaports, and inland terminals. Used for stacking and moving shipping containers between storage areas, trucks, and railcars. Increases efficiency by enabling high-density container stacking (5-8 containers high).
2. Intermodal Logistics & Freight Yards
Essential in rail freight terminals to transfer containers between trains and trucks.Improves loading and unloading speed in intermodal operations. Works alongside reach stackers and straddle carriers for smooth cargo movement.
3. Steel & Heavy Industry
Used in steel plants, shipyards, and manufacturing yards to handle heavy materials.Moves steel coils, billets, and large fabricated components with ease.Equipped with magnet or grapple attachments for handling metal products.

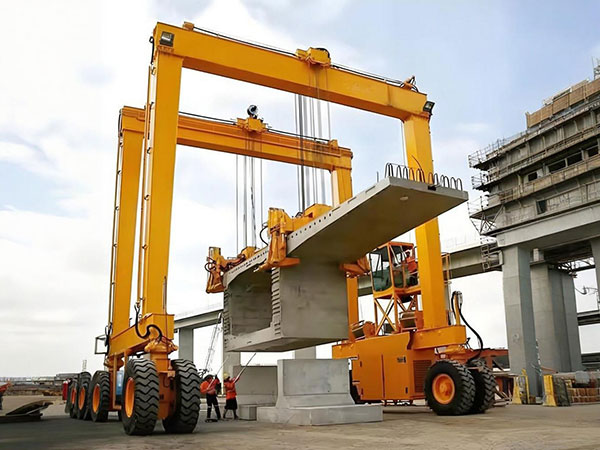

4. Construction & Infrastructure Projects
Lifts and transports precast concrete beams, bridge segments, and heavy equipment.Used in tunnel and highway construction for moving large structural components.Provides flexible on-site mobility compared to fixed gantry cranes.
5. Power Plants & Energy Sector
Used in nuclear, hydroelectric, and thermal power plants to move large transformers and turbines.Helps with installation and maintenance of power generation equipment.
6. Mining & Bulk Material Handling
Moves heavy loads in mining operations, including large containers of ore or coal.Works in industrial storage yards to handle bulk raw materials.
7. Aerospace & Automotive Industry
Used in aircraft manufacturing to transport fuselage sections and large components.Helps in vehicle assembly plants by moving heavy machine parts.
All kinds of Overhead Crane, Gantry Crane, Electric Hoist, Transfer Cart, Industrial Electric Winch, Radial/Flat Gate Hoist, Steel Gate, etc.
Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Specific parameters such as lifting capacity, lifting height, span, cantilever length if have, power supply voltage, control method, etc.
Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
Before the delivery, every products will be tested. We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate for each crane. You are also warmly welcomed to come to our factory for inspection.
Yes, we have a professional installation team and have been to manycountries to assist in installation. lfyou need us to provide this service,pleaselet us know in advance and we will provide you with the best solution.
We have after-sales team to support you for 24hours.
Safest package chosen to protect your goods during transportation.
Alibaba pay、 Alibaba Trade Assurance、T/T、L/C.
