Project Background
At a critical moment when the steel industry is accelerating its transition toward intelligentization and green development, the 4.5-million-ton smart hot rolling project has been officially commissioned. As the core material handling equipment supplier for this landmark project, 34 intelligent double-girder overhead cranes with lifting capacities ranging from 10 tons to 100 tons have been fully delivered and put into operation, injecting powerful smart logistics capabilities into this state-of-the-art hot rolling production line.

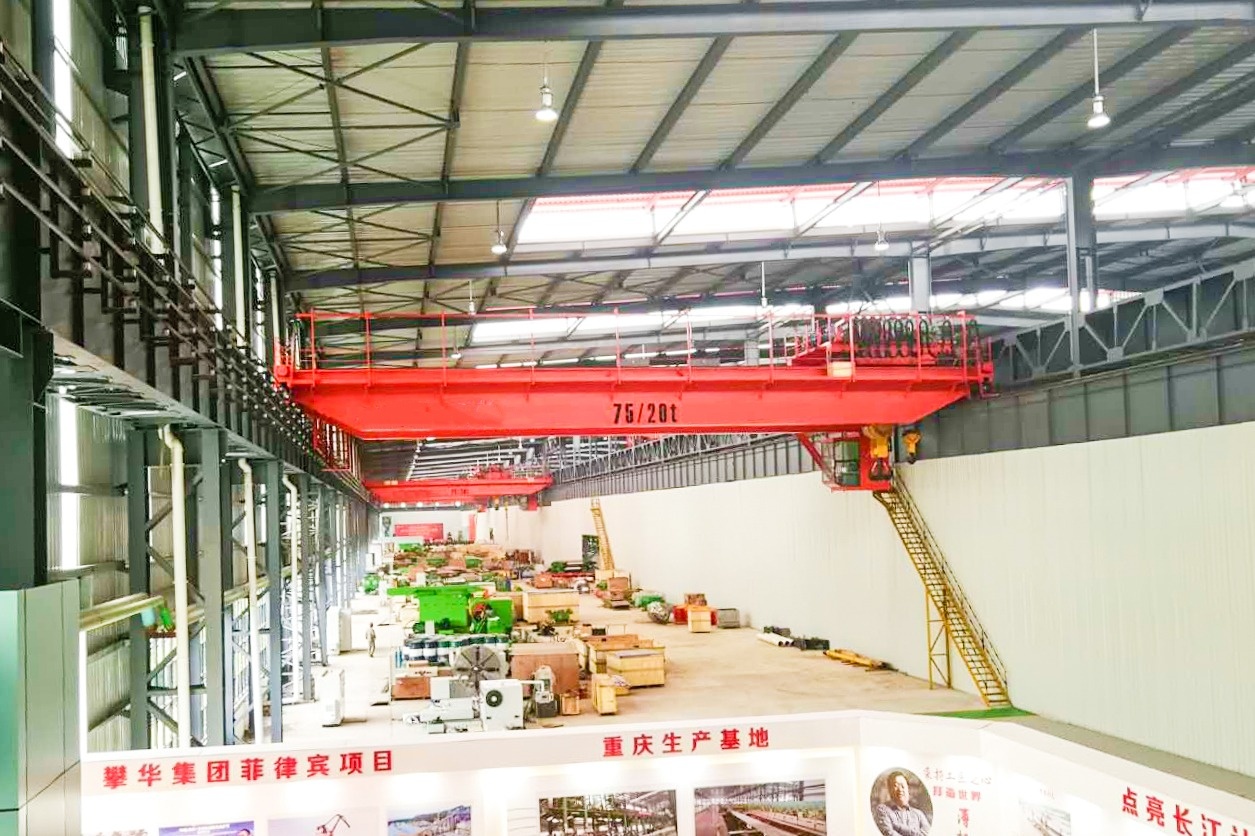

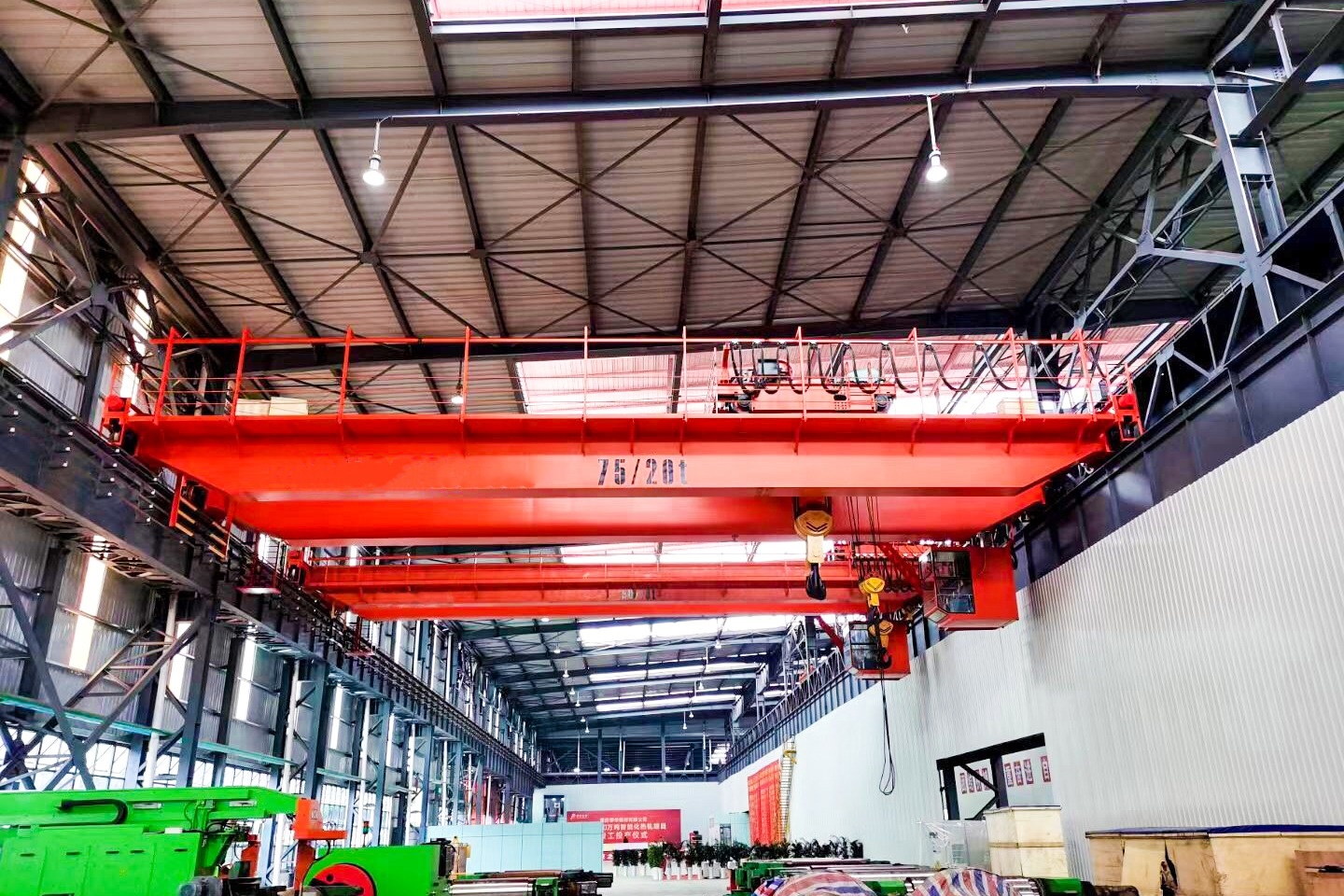

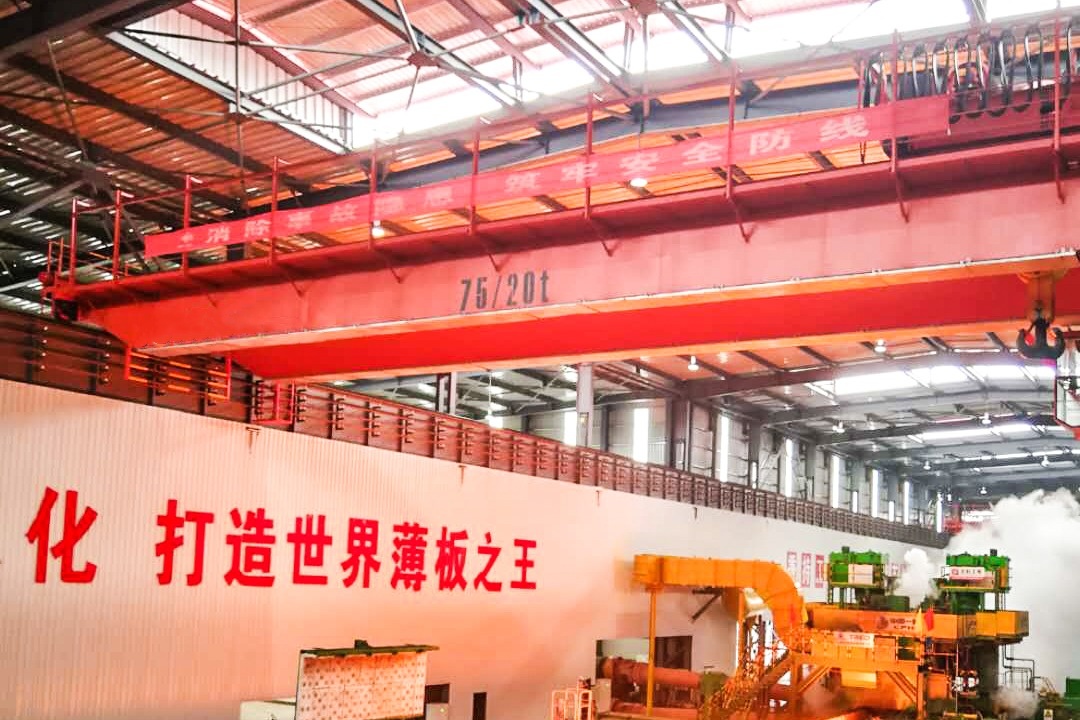

Equipment Overview
| Specification | Detail |
|---|---|
| Total Units | 34 units |
| Capacity Range | 10 t – 100 t |
| Structure Type | Double-girder overhead bridge crane |
| Application | Material handling for hot rolling production lines |
| Duty Class | Designed for continuous heavy-duty service in high-temperature hot rolling environments |
Core Application Scenarios
1. Slab / Billet Handling
The starting point of hot rolling production – receiving, storage, and feeding of high-temperature slabs. Equipped with high-precision positioning and automatic load gripping technology, these intelligent cranes ensure seamless transfer of slabs from the storage yard to the reheating furnace, minimizing manual intervention and improving production rhythm.

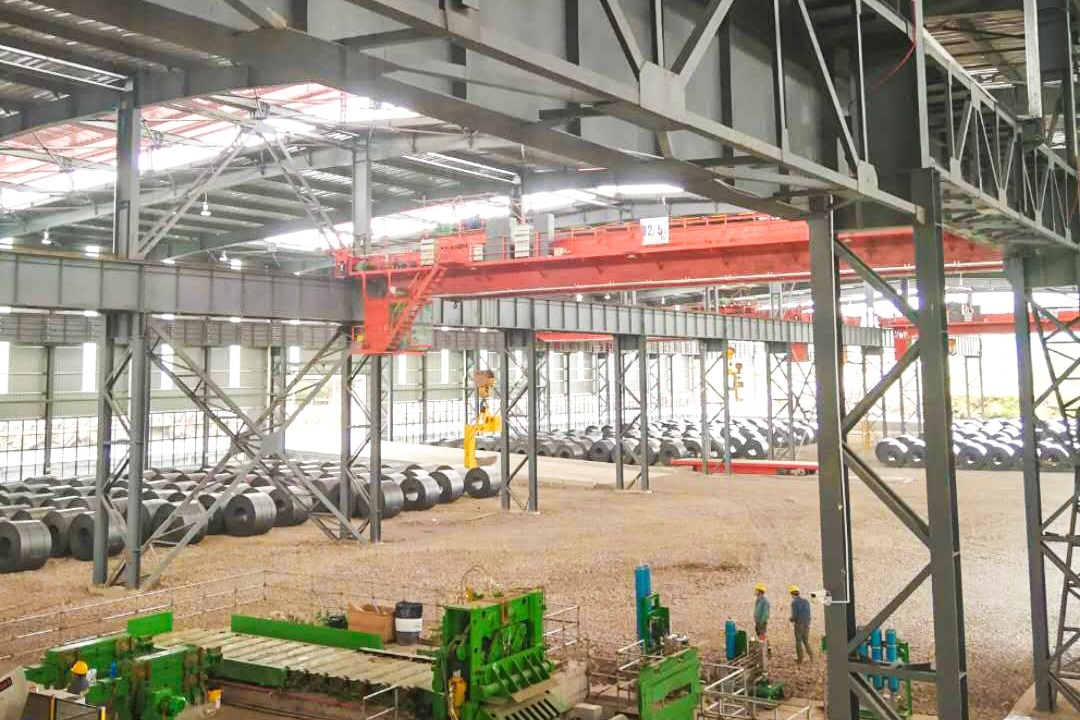

2. Finished Coil Logistics
The finished coil warehouse serves as the critical hub for production scheduling. With intelligent fleet dispatch systems, the 34 cranes operating across multiple bays enable unmanned, fully automated coil handling – from warehousing, strapping, and staging to outbound shipping – meeting daily throughput demands in excess of 10,000 tons.
3. Roll Changing & Equipment Maintenance
Frequent roll changes and maintenance are essential operations on hot rolling mill lines. Featuring variable-frequency drive (VFD) control and advanced anti-sway technology, these intelligent cranes achieve millimeter-level positioning accuracy, enabling safe and efficient lifting of heavy mill rolls.
Technical Innovation Highlights
| Feature | Description |
|---|---|
| Full-Capacity Coverage | A tiered configuration from 10 t to 100 t covers the entire hot rolling workflow – from slab handling and finished coil outbound to equipment servicing – delivering a complete, integrated logistics solution. |
| Intelligent Dispatch Brain | AI-powered dynamic resource allocation system optimizes travel routes and minimizes inter-crane conflicts during coordinated multi-crane operations, significantly boosting overall yard efficiency. |
| Anti-Sway Precision Control | Advanced algorithms ensure load stability and precise positioning even at high speeds, critical for avoiding collisions with sensitive production equipment. |
| VFD Stepless Speed Regulation | Smooth acceleration/deceleration extends mechanical component life and reduces energy consumption compared to traditional contactor controls. |
| Safety Interlock System | Zone-based collision avoidance and load-overload protection ensure safe operation in congested hot rolling environments. |
| Remote Monitoring & Predictive Maintenance | Real-time condition monitoring with vibration and temperature sensors enables early fault detection, reducing unplanned downtime and extending equipment lifecycle. |
Key Performance Parameters
| Parameter | Specification |
|---|---|
| Lifting Capacity | 10 t / 20 t / 32 t / 50 t / 75 t / 100 t (customized per bay) |
| Span | Customized to building column spacing |
| Lifting Height | Customized to mill layout requirements |
| Lifting Speed (Main) | VFD-controlled, 0.5 – 12 m/min (stepless) |
| Trolley Travel Speed | VFD-controlled, 5 – 40 m/min |
| Bridge Travel Speed | VFD-controlled, 10 – 80 m/min |
| Positioning Accuracy | ±2 mm (standard) / ±1 mm (precision mode) |
| Working Duty Class | ISO M7–M8 / FEM A7–A8 |
| Ambient Temperature Rating | Up to 200°C (with heat shielding) |
| Control Mode | Fully automatic / semi-automatic / remote manual override |
| Communication Interface | PROFINET / PROFIBUS / Ethernet IP for MES/ERP integration |
Operational Highlights
✅ Unmanned Warehouse Logistics
The 34 cranes operate under a centralized control room with full remote monitoring. Automated tasks include slab identification, coil tracking, and priority-based dispatch – all without on-floor operators.
✅ High-Reliability Design for Hot Rolling
All critical components – including motors, gearboxes, brakes, and electrical enclosures – are equipped with heat-resistant insulation, dust-proof sealing, and forced cooling systems to withstand the extreme conditions of hot rolling mills.
✅ Synergistic Multi-Crane Coordination
The intelligent dispatch system enables synchronized lifting and coordinated travel of multiple cranes working in the same bay, ensuring safe and efficient handling of oversized or unbalanced loads.
Project Value
| Benefit | Impact |
|---|---|
| Labor Savings | Full automation reduces on-floor operators by over 70% |
| Throughput Increase | Smart dispatch shortens cycle times, increasing daily handling capacity by 25%+ |
| Safety Enhancement | Zone interlocking and remote operation eliminate personnel exposure to high-temperature zones |
| Maintenance Optimization | Predictive alerts reduce unplanned downtime by 30%+ |
| Energy Efficiency | VFD control and regenerative braking cut energy consumption by 15–20% |
Conclusion
The deployment of 34 intelligent double-girder overhead cranes ranging from 10 to 100 tons represents a milestone in smart hot rolling logistics. This integrated solution – combining full-capacity coverage, AI-driven dispatch, millimeter-level precision, and robust heat-resistant design – not only meets the rigorous demands of 4.5-million-ton annual production but also establishes a new benchmark for intelligent material handling in the steel industry.
